Thoughts on the short life of concrete, the man-made stone of the 20th century

IMG_9337

By Ronald Ahrens

Today I ask the reader’s forbearance as I interrupt our road-trip series. We have three more elevators to visit, including Tillotson Construction Co.’s first reinforced-concrete elevator, a little honey in Goltry, Okla. You can see the Goltry elevator complex in the photo above; Tillotson’s 1939 elevator is on the right.

Texas-Okla Logo 04More to come in the next post.

But today I share some thoughts with an important point about impermanence. This topic came up in bold relief when I got to Pond Creek, the second of the remaining three stops, where the issue arose of an elevator’s rated life.

I had already seen crumbling concrete at the Johnson-Sampson elevator in Orienta. I was discussing this just the other day with Uncle Chuck Tillotson. He reminded me the problem lay with the right recipe for the original mix: cement, sand, and water weren’t blended in the correct proportions. Some 65 or 70 years later, we see the results.

Uncle Chuck recalled his own struggles as a teenager, whose mind was on girls, while being in charge of mixing the concrete on grain elevator construction sites around 1950. Was that the fourth or fifth load he had scooped in the tractor’s bucket and brought over to the batch plant.

(And then the tractor’s clutch would give out as it always did.)

IMG_9275

Uncle Chuck elaborated upon our lunchtime discussion in a subsequent email. “Most people don’t realize that a grain elevator, as is the case with any concrete structure, does not provide an indefinite lifetime,” he wrote. “It is subjected to all the elements of nature–wind, rain, freezing temps, terrific heat, and most of all the internal bearing pressure from the grain on the walls of the storage bins.”

Bearing pressure on the walls of the Goltry elevator was rated at 2.47 tons per square foot.

IMG_4832

St. Michael’s Church, Goltry, Okla., because I liked it. Hmm, brick will outlast concrete, won’t it?

“Concrete is not a permanent material,” he continued. “Unlike stone it is a man-made material and subject to deterioration over the years and very dependent on the proper amounts of sand, gravel, and cement made into a cementitious mixture and poured into a form to encase steel reinforcing.”

Our conversation received amplification from a June 17 op-ed piece in the Los Angeles Times. The essay is adapted from Vince Beiser’s new book, “The World in a Grain: The Story of Sand and How It Transformed Civilization,” which comes out Aug. 7.

Concrete, Beiser writes, provides “an almost magically cheap way” to build things. But this “man-made stone” brings its own problems.

“Concrete fails and fractures in dozens of ways. Heat, cold, chemicals, salt and moisture all attack that seemingly solid artificial rock, working to weaken and shatter it from within.”

He forecasts 100 billion tons of concrete buildings, roads, and dams need to be replaced.

And that’s the question at every elevator I visited.

I was happy to discover most were still working and in good condition. But what happens in 20 years? There will probably be even more steel bins, although these have problems of their own.

Collecting six detail photos from Orienta, Meno and Helena, Okla.

IMG_9299

Angled view of the east elevator’s headhouse at the High Plains Co-op’s facility in Meno, Okla.

IMG_9305

Horns at the High Plains Co-op’s elevators in Meno, Okla., warn of leg overload. Sensors monitor the situation “so you don’t have to have a man up there,” site manager Matthew Thomsen said. If the horn sounds, “You want to be sprinting.”

IMG_9316

IMG_9315

Looking through the gap between the main house and storage annex at the Farmers Exchange complex in Helena, Okla. The wind was blowing so hard–accelerating through the gap–that I couldn’t stand quite still while getting the photo.













On-site improvisation at the modest ’47 Tillotson elevator in Helena, Okla.

IMG_9331

By Ronald Ahrens

When the 100,000-bushel, single-leg elevator went up at Helena, Okla., in 1947, it adhered to the plan first used the previous year at nearby Pond Creek. In the above photo, it is seen on the right. I don’t know who did the elevator with the rounded headhouse.

Texas-Okla Logo 04On the ’47 elevator there was a full cupola, or headhouse, and an  attached driveway. An old elevator, probably a wooden one, existed at the site, and a note indicates that cross-spouts led over to it.

This is a one-of-a-kind instance in the records of Tillotson Construction Co.

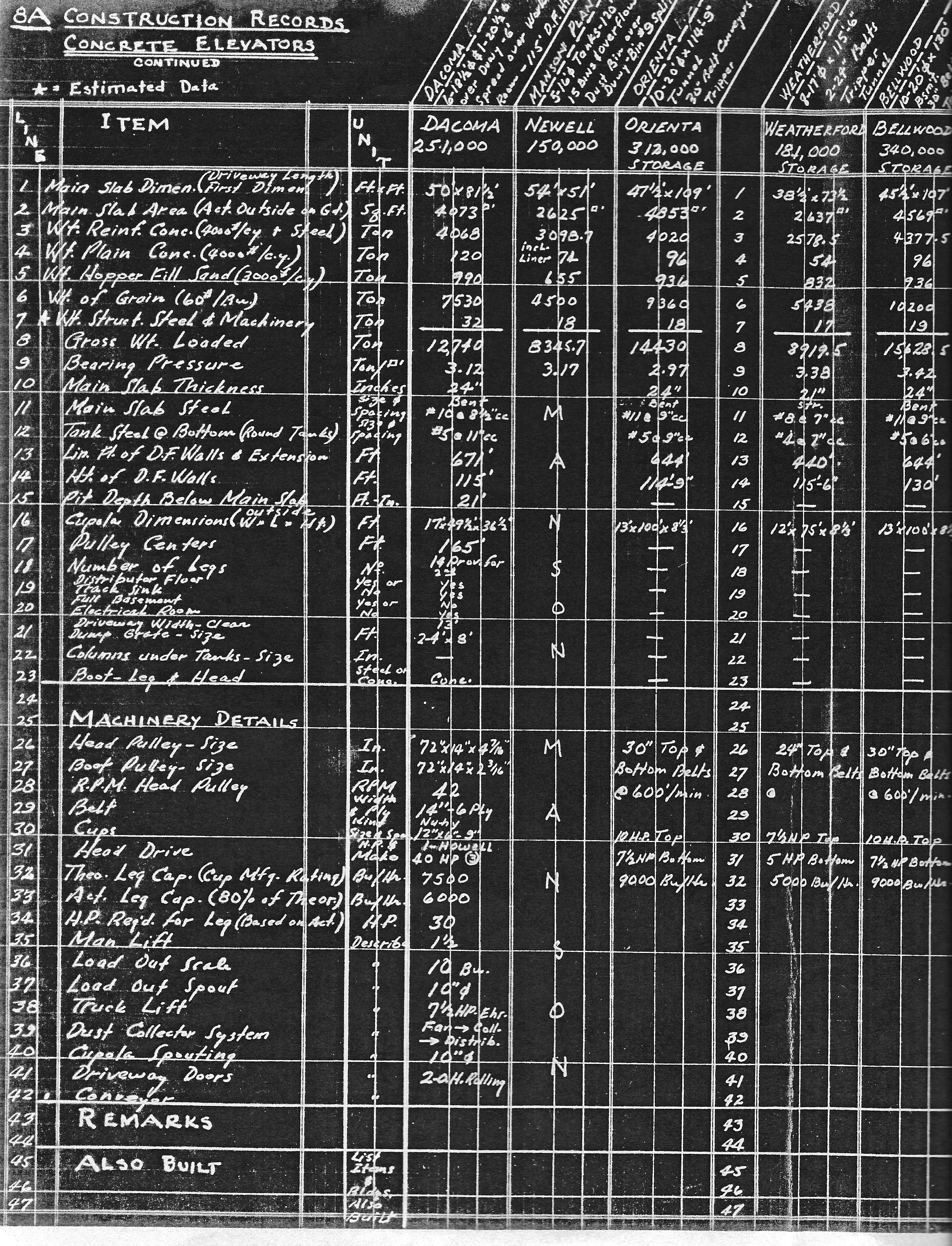

Tillotson’s pages also say that 900 cubic yards of concrete went into the job along with 39.57 tons of reinforcing steel.

The 18-inch-thick main slab covered an area of 41 x 41 square feet. Below this deck, the pit was 13 feet 3 inches deep.

Fully loaded, the elevator weighed 4,968 tons.

IMG_9323

The drawform walls rose 110 feet and were capped by the rectangular cupola measuring 16 feet wide, 31 feet long, and 28.5 high. Even with four windows on the long sides, the cupola projected a sort of robotic muteness. It accommodated the leg, with pulley centers being 152.16 feet apart. The boot pulley was 72 x 14 x 2 3/16 inches while the head pulley was 1.25 inches deeper.

A 20-horsepower Howell motor turned the head pulley as fast as 40 rpm.

Wrapping around the pulley wheels, the 310-foot-long, six-ply Calumet belt was 14 inches wide. Grain cups measured 12 inches wide and six inches deep at 12-inch intervals.

According to the rating supplied by the cups’ manufacturer, theoretical capacity of this leg going all out was 5,380 bushels per hour. But it operated at 80 percent of maximum, meaning actual capacity was 4,300 bushels per hour. This required 18.6 horsepower.

IMG_9335A 7.5-hp Ehrsam motor operated the truck lift in the driveway, which raised a truck’s nose, causing the load of grain to stream into the pit.

A final note reads, “Pit Depth & Cupola Ht. incr. after final Plans. (Noted above.)” Could the cupola be higher than the listed 28.5 feet?

The extra information is consistent with records on other ’47 elevators. “Pit extra deep for cleaning,” says the note for Minneapolis, Kan., where the 100,000-bushel elevator also derived from the Pond Creek plan.

An identical note appends to the entry for the 150,000-bushel elevator at Dalhart, Tex., which was built on an original plan, and includes the revelation that the cupola height increased by 8.5 feet “due to Annex.”









Tillotson left a big mark–and a question mark–at the little town of Helena, Okla.

IMG_9333

By Ronald Ahrens

As I approached it from the south, the elevator complex in Helena, Okla., rose from the plain.

Texas-Okla Logo 04No one was around when I got there. I’d left Meno and gone back to the northwest to this little town, which residents pronounce Heh-LEE-nuh. It was established 115 years ago and flourished because of the Arkansas Valley and Western Railway, a short-line road that linked the city of Tulsa to the Atchison, Topeka, and Santa Fe Railway.

The line has been in the hands of the Burlington Northern since 1980.

As I drove across the plain between Meno and Helena, it occurred to me that before the late 1930s, no landmarks would have been distinguishable. The monotony of gentle undulation, the occasional wind-blasted tree, and a few huddling houses and farm buildings were all this landscape offered. One would see a church steeple when nearing a town.

IMG_9317

Looking east along the tracks at the Farmers Exchange Co-op complex in Helena, Okla.

Then, with relative suddenness, reinforced concrete grain elevators went up in every town, grain castles, towering and enigmatic and 150 feet tall. After the 1950s it was common to have an elevator in view, if not now, then as soon as you came over the next knoll.

I came over the next knoll, and the early evening sun made the Helena elevators resplendent.

They’re operated by Farmers Exchange Co-op (est. 1917). Alas, the office was closed.

What I know is that Tillotson Construction Co., of Omaha, built a 100,000-bushel, single-leg elevator here in 1947. A note in the records says it featured a full cupola, or headhouse and four tanks of 15.5 feet in diameter that reached to 110 feet in height.

The cupola, or headhouse, was 16 feet wide, 31 feet long, and 28.5 feet high.

I think these specs refer to the elevator at the west end of the complex, the one with the rectangular headhouse and four windows in each of the broad walls. This elevator appears to have four tanks.

IMG_9328

A manhole cover in the storage annex: “Tillotson Const. Co., Omaha, Neb., The Hutchinson Foundry & Steel Co.”

A Tillotson crew returned in 1949 to put up a 100,000-bushel annex comprising five tanks, or silos, of 15.5 feet in diameter and 110 feet high.

And they were back again in 1953 to erect a 200,000-bushel storage annex with 10 more tanks of the same measure.

But what about that second elevator, the one with the curved headhouse on the north face? It has many of Tillotson’s hallmarks, and the Co-op seemed to like to call on Tillotson Construction Co. for its new jobs.

In case of an emerging answer, an update will be posted.





In 1953, the curved headhouse at Meno, Okla., was only 26.5 feet high

IMG_9311

By Ronald Ahrens

In previous posts I’ve observed that the 152,000-bushel elevator at Meno, Okla., seen at right in the above photo, was adapted from 1950 drawings for Tillotson Construction Co.’s job at Imo, Okla. This plan was also used the same year in Clifton, Kan.

Texas-Okla Logo 04What prompted Tillotson’s designers to pull out the Imo plan again in August of 1952 for the job completed in 1953 is unknown.

I had also found a second, newer Tillotson elevator at the site. There is no mention of it in the records that extend through 1955. Site manager Matthew Thomsen speculated it came into being in 1956. (Tillotson Construction Co. stayed in existence until Reginald O. Tillotson died in 1960.) With capacity of about 310,000 bushels, it’s more than double the size of the older house.

The smaller elevator was nevertheless a large structure, consuming 1,519 cubic yards of concrete (plus another 17 yards for the hoppers, which were not reinforced). It also gobbled up 68.88 tons of reinforcing steel.

IMG_9291

The 21-inch-thick main slab covered an area 54 x 51 feet. It sat over a pit that was 15 feet 9 inches deep. The pit was dug by hand. A soil map of Oklahoma appears to show that Meno sits on deep, loamy soil, so the excavation might not have been a terrible ordeal for the crew. In places with caliche soils, the excavating would have to be done with dynamite.

When the tanks were fully loaded, the whole shebang weight 8,397 tons.

The cupola, or headhouse, measured 22.25 feet wide, 42.5 feet long, and 26.5 feet high. In 1953, Tillotson also created headhouses as high a 46 feet at Cherokee, Okla., and 49 feet at Estill, S.C. Nevertheless, the pulley centers were spaced 152.6 feet apart in the leg.

This single-leg elevator had a six-ply, 14-inch-wide belt with 12-inch-wide, six-inch-deep cups spaced at nine-inch intervals.

IMG_9287

Plan for the larger elevator at High Plain’s Co-op’s larger Tillotson elevator.

The head pulley was 72 x 14 x 4 7/16 inches while the boot pulley was 72 x 14 x 2 3/16 inches. It turned at 42 rpm thanks to a 40-horsepower Howell motor.

Theoretical leg capacity was 7,500 bushels per hour; actual capacity, calculated at 80 percent of theoretical, was 6,000 bushels per hours and used 27.75 horsepower.

A 1.5-hp Ehrsam motor operated the man lift while a 7.5-hp motor powered the truck lift.









Original drawings reveal internal details of Tillotson’s first Meno, Okla., elevator

IMG_9308

By Ronald Ahrens

When I visited the office of High Plains Co-op, in Meno, Okla., Matthew Thomsen dug out drawings of the 152,000-bushel elevator that Tillotson Construction Co. built in 1953.

Texas-Okla Logo 04I took quickie photos with my phone.

The first drawing shows the leg, noting the right side is the “up leg” and the left side is “down leg.”

That’s so it isn’t installed backwards.

The tanks, or silos, are 16 feet inside diameter. To get an idea where that rates, consider how Tillotson started in 1939 with tanks 12-feet in diameter. Most of the elevators I’d visited so far on my road trip had 20-foot tanks, but the Ralston, Iowa, storage annex Tillotson put up in ’53 boasted 28-footers.

There is a truck lift and dump grate in the internal driveway.

Inside the headhouse, an automatic scale feeds a load-out spout that drops all the way to a rail car on the siding. Dig that draftsmanship by Ted Morse, whose initials appear in the information box seen in the third photo.

IMG_4826

The next drawing shows details of the work floor including nine-foot-wide dump grates. We see the electrical room and, on the far right, a dock.

The drawing also shows the bin plan with 16 bins of various sizes and shapes. A handwritten notation on Bin 9 says, “Scales.” At the far end is the dust bin.

Both drawings adhere to a scale of 1/4 inch to 1.0 foot.

IMG_4827

The final portion shows bin capacities in a list with some amendments. Penciled above the identification box, the note says, “Imo,” referring to the prototype for this elevator built in 1950 at Imo, Okla.

The plan was revised, according to another note, on Aug. 1, 1952.

We see in the box on the lower right that this is a standard-plan 154,000-bushel reinforced-concrete elevator. But how to account for the 2,790-bushel discrepancy between the plan and the construction record, which lists Meno at 152,000 bushels?

Thanks to Tracie and Matthew, of High Plains Co-op, for hauling out these drawings.

IMG_4829





Welcome to Meno, Okla., where Tillotson elevators go off the charts

IMG_9281

By Ronald Ahrens

With the country elevators in Orienta, Okla., closed up and one of them crumbling, I decided to get moving. The site was a little spooky.

Texas-Okla Logo 04Meno was just 20 minutes east, and I felt its promise.

Founded in 1899, Meno took the name of a Mennonite leader, Menno Simons, but one “n” was left off the paperwork. The coming of the Enid and Anadarko Railway within three years was a boost for Meno.

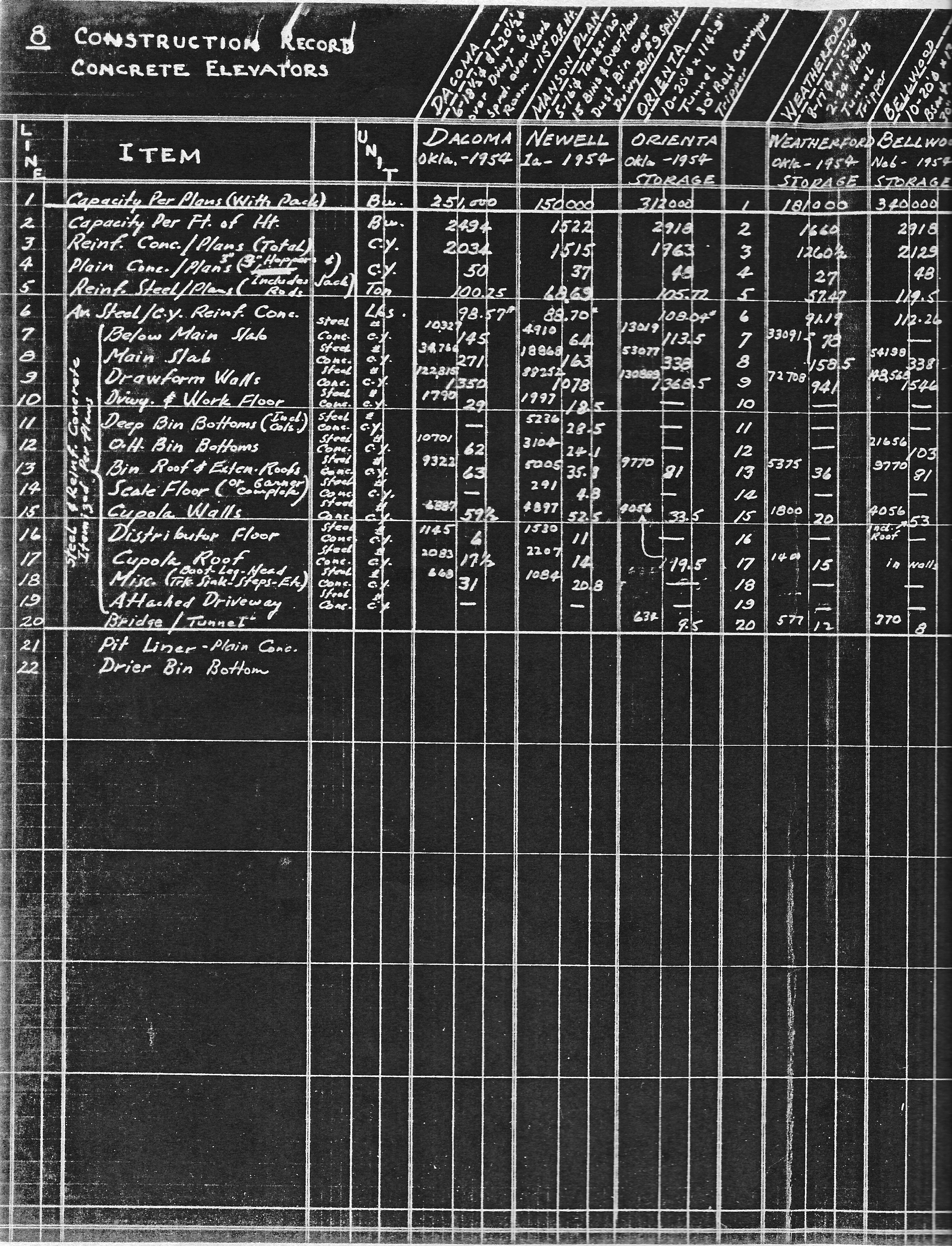

Tillotson Construction Co. records show the company built a 152,000-bushel elevator in this tiny hamlet. Adapted from the 1950 drawings for Imo, Okla., this plan was also used the same year in Clifton, Kan.

Meno is the first elevator listed in the records for 1953, when the company also built in Orchard Hill, Ga.; Cherokee, Okla.; Columbia, Ill.; Jamestown, Kan.; Ralston, Iowa; Estill, S.C.; Flagler, Colo.; and, my next stop, Helena, Okla.

Such geographical diversity in a single year was never exceeded by Tillotson.

IMG_9300

As I approached Meno from the west, a field of canola in the foreground, I saw two elevators arising from this plain, and both flaunted their curved headhouses like faces of hope and freedom.

What was I about to encounter in this town of 250 persons?

I parked in front of the Great Plains Co-op’s office and poked around. In Follett, Tex., and at my last stop in Orienta, I had encountered surprises and puzzles. Follett had a Tillotson elevator and a Mayer-Osborn elevator facing each other. And Orienta puzzled me because of the combination of builders and owners–not to mention the decrepitude there.

IMG_9289

Tracie Rhodes and Matthew Thomsen

As I looked around the Meno site, it became apparent that both elevators were Tillotson jobs. I found the manhole covers attesting to this fact. The second elevator was newer, larger, and invisible in the records.

As questions swam through my head I went inside the office and met Tracie Rhodes and Matthew Thomsen. Somehow, we came up with 1956 as the date for the second elevator’s construction.

Thomsen, a Nebraska boy from Minden, said the elevators were in good condition, although some important repairs had been needed to the floors and in the gearing.

IMG_9284Additionally, the 13 x 17-foot driveway had benefited from some reinforcing.

“Agriculture has gotten bigger, the trucks heavier,” he said.

I showed them the construction record, and they had something for me to look at as well: original drawings.

What a welcome to Meno–a little more than I’d expected!

Watch this space tomorrow for a glimpse of the 65-year-old documents that show inner details of the original elevator.
