Tillotson’s orphan designs of the 1940s gave way to popular elevator plans

by kocart
DSC_2297

This Mayer-Osborn oddity in Cordell, Okla. was only built once for a customer with specialized needs

Story and photos by Kristen Cart

In the last post, we checked out two of Tillotson Construction Company’s earliest designs and their derivatives. In the 1940s, many elevator plans departed substantially from Tillotson’s first efforts, and they had plan names of their own. Some of those elevators were one-of-a-kind.

I will examine the orphan designs and a few that were used more than once, but failed to catch on, in the next two posts.

Orphan designs were unique storage plans, made to meet unusual customer needs. Non-standard-sized elevators were built to mimic Tillotson’s more basic offerings. Annexes were custom built. If an elevator and annex were built together, certain features were unique.

Here are the orphans of the 1940s.

Peterson Plan:

Peterson 01Peterson, Iowa (1944) was “storage, mainly,” with no driveway, a “x spout to leg,” and 12 1/2-foot-diameter tanks. It had a conveyor belt and a wooden, hand-operated man-lift. Its capacity was only 37,550 bushels. This was one of the smallest elevators Tillotson ever built, though a few were even smaller.

Farnsworth Plan:

Farnsworth, Tex. (1945) was the largest elevator Tillotson built to date, with a 350,000 bushel capacity. It had 19 bins with six 20-foot-diameter tanks, and a tunnel with a conveyor belt. A semi-truck driveway was built with a machine room directly overhead. Projects of this size were uncommon.

Peterson 02Farnsworth, Tex. will require a site visit, because we don’t know if a Tillotson elevator still stands. Three large elevators exist in Farnsworth, but none is typical of Tillotson’s style–two have hexagonal bins (the design made a big media splash in 1949), and the other could be a Tillotson, but looks more like a Chalmers and Borton elevator.

Dalhart Plan:

Dalhart, Tex. (1947) was a bit of an oddball, having an attached driveway rather than a center driveway. It had no basement and no distributor floor, but sported the “standard cupola.” It had four 20-foot-diameter tanks and could hold 150,000 bushels of grain. A 98,000-bushel annex was built alongside it at nearly the same time, which could explain the oddities: direct cross-spouts from the elevator provided gravity flow to the annex pit.

A second elevator was built in Dalhart, Tex., in 1949, which also gave is name to a plan: this “Dalhart Plan” described a large elevator with 310,000-bushel capacity.

Eva Plan:

Eva, Okla. (1947) was a very small elevator with only a 13,500 bushel capacity. The description says “cupola in D.F. [draw-form] wall.” The driveway was attached. It had two 14-foot bins, a “rope drive” and motor room.

Moscow Plan:

Moscow, Kan. (1948) is featured in an earlier post on this blog. It was a smallish elevator of 100,000 bushel capacity, four 14 feet-diameter tanks, and a 13 x 17 foot driveway with six bins directly overhead. It incorporated a dust bin.

DSC_0288

Minneapolis, Kan., mill building, elevator, and annex

Mill Building:

Minneapolis, Kan. (1948) is a site that fooled me on first examination. No manhole covers were evident on any structures except for the mill building. I didn’t expect an elevator with a rectilinear headhouse to be a Tillotson creation, so when we featured the mill building in our post (follow link), I added specifications which describe the elevator beside it! We will publish the mill building specifications in a later post.

Greenwood 01

Greenwood, Neb. ca. 1951 with attached Tillotson annex

Hordville Plan:

Hordville, Neb. (1949) was a 70,000 bushel capacity elevator with four twelve-foot-diameter tanks, a driveway, and eight bins directly above the driveway. Its rounded headhouse, by 1949, was already standard on Tillotson elevators.

Hordville’s outward appearance is a miniature version of Tillotson elevators of the same vintage–a style that continued into the early 1950s. Greenwood, Neb. (1951), which was built using the Churdan plan, circa 1949, is a larger-scaled example of the type.

Pierson Plan:

Pierson, Iowa (1949, storage) had a 80,200 bushel capacity, four 15 1/4 foot-diameter tanks, a dump pit, one way scale, a spout floor below the bin roof, and cross spouts. It was designated “storage,” a structure more like an annex than a self-contained elevator.

Clare Plan:

Clare, Iowa (1949) was built to hold 88,800 bushels of grain with four 15 1/4 foot-diameter tanks. It had a spout floor below the bin roof and an attached drive.

The artists of the Tillotson Construction Company–architects and engineers, those creative, ingenious men–were prolific producers during the 1940s when elevator technology bloomed. The flower of their achievements can be seen scattered across the prairies, either finding useful work, or passing into idleness, while curious onlookers snap their pictures and move on.

After the 1940s, almost all of the first Tillotson designs were dropped or modified as technology advanced. Only two designs (Churdan and Jackson) of the late 1940s carried into the 50s, and they were rapidly replaced after that, as will be seen in the next post.

Tillotson’s design plans consolidated the trends in elevator form and function

by kocart

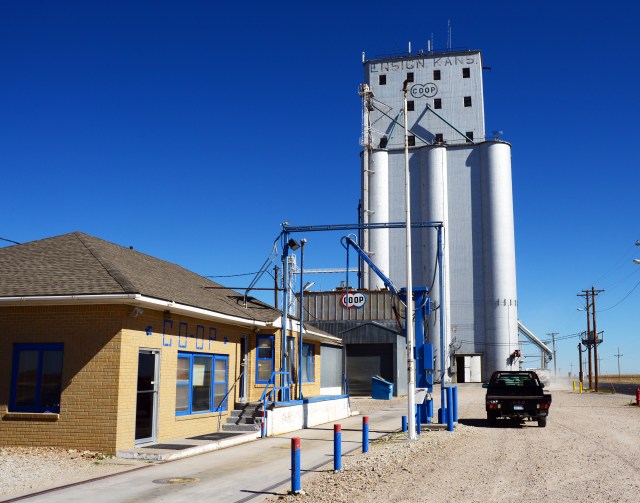

Photo by Gary Rich

Photo by Gary Rich

Story by Kristen Cart

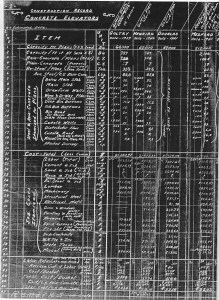

The concrete elevator construction records of the Tillotson Construction Company display data in columns, each column headed with the location of the project, and the date it was built. Specifications follow. Above the header is the name of the plan used to build the elevator. A short description accompanies the plan name.

For instance, in 1955, the Boyden, Iowa, elevator was built using the Palmer, Iowa, plan of 1950, with eight bins, each being 18 feet in diameter and 117 feet high. The driveway measured 13×17 feet.

You might discover, on review, how many of each elevator type were built based upon the plan names. This exercise will show us how the elevator plans evolved, and which were successful over the years of the elevator boom. Over the next few posts, I will attempt to spot trends over the span of our records, starting at the beginning. The elevators will be referenced by their locations.

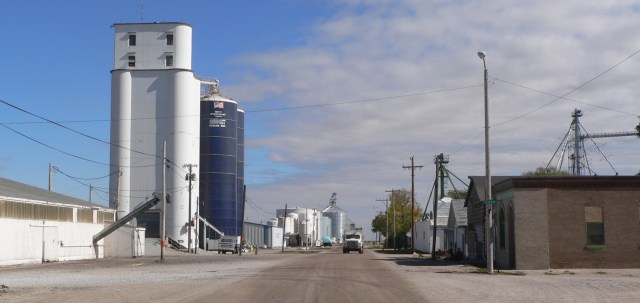

Richland,_Nebraska_Front_from_Tilden_1

Richland, Neb.: Front Street, looking east from about Tilden Street, taken on 21 October 2013, by Ammodramus via Wikipedia Commons

Goltry plan:

Goltry, the first elevator of its type, was built with a center drive and four 12-foot-diameter tanks. The Goltry plan specified an elevator in the 60,000-bushel class, the smallest Tillotson built:

Goltry, Okla. (1939); Newkirk, Okla. (1940); Douglas, Okla. (1941); Wellsburg, Iowa (revised plan, 1946); Polk, Neb. (1948–“Wellsburg plan” was another heading used for this elevator, just to make it confusing); and Richland, Neb. (1948).

From the photographs we were able to find, this elevator type was a small, four-square design with a rectilinear headhouse. Several of the type were still standing in recent photographs.

Medford Plan:

Medford 01Medford, the first elevator of its type, was built with a center drive, a cross work room, and 22 tanks of 15 1/2 feet in diameter. These old elevators had rectilinear headhouses, a feature that was later abandoned in favor of a rounded design. The plan represented a big jump in size from Goltry, having a 212,000-bushel capacity. Later, a revised Medford plan had a capacity of 140,000 bushels, and an expanded plan pushed the capacity to 240,000 bushels:

Medford, Okla. (1941); Thomas, Okla. (1941); Burlington, Okla. (revised plan, 1945); Cherokee, Okla. (revised plan, “like Burlington,” 1945); Lamont, Okla. (revised plan, 1945); Blackwell, Okla. (revised plan “like Lamont,” 1945); Booker, Tex. (revised plan, 1945); Follett, Tex (revised plan, 1945); Elkhart, Kan. (revised plan, 1946); Kingfisher, Okla. (expanded plan, later designated the Kingfisher plan, 1946); Thomas, Okla. (expanded plan, “similar to Kingfisher,” 1946); Ensign, Kan. (expanded plan, “similar to Kingfisher,” 1946); Manchester, Okla. (revised plan, later designated the Manchester plan, 1948); Montezuma, Kan. (1948)

The two daughters of the Medford plan, Manchester and Kingfisher, follow:

Manchester Plan:

Medford 02Manchester, Okla. (1948); Rolla, Kan. (“like Manchester,” 1948)

Kingfisher Plan:

Hooker, Okla. (1949)

More analysis is needed to determine exactly when the transition to a rounded headhouse occurred–but we think it did occur sometime after the Manchester plan was first designated as such, unless some of these elevators were modified at a later date.

What is clear from photos of Goltry and Medford plan elevators is that the rounded headhouse design was not used in Tillotson’s earliest elevators, and was likely adopted sometime in 1948–both plans made the transition in that year. Other details are bound to emerge as we study the other elevator plan types as they entered the Tillotson Company’s repertoire.







Will the 1949 Tillotson elevator in Paullina, Iowa, please stand up?

by kocart

DSC_0508

Story and photos by Kristen Cart

We know that the Tillotson Construction Company of Omaha built an elevator in Paullina, Iowa, but we are not certain which one. We have only newspaper accounts to guide us. The company records list all of their concrete construction projects until 1956 (albeit missing one page), but omit Paullina. A visit to the location provided no clue.

Perhaps the elevator they built was not concrete? There is a precedent in Hawarden, Iowa, where the company built a wooden elevator in the tradition of Charles Tillotson, the patriarch of the family elevator business. But that elevator went up in 1940. Paulina was built in 1949, well after the company had changed its construction method to slip-formed concrete. On review, indeed, we found that the newspaper account said the Tillotson elevator was to be concrete.

My family rolled through Paullina on a Sunday when the co-op was closed. Grain trucks were parked, and the facility was quiet except for the drone of circulation fans. We found no identifying manhole covers, so I had to content myself with photos. I took at least one image of each elevator on the site. None of the elevators followed the familiar Tillotson style, which may not have been fully developed by 1949 in any case.

Let the reader be the judge from the photos presented here.

These appear to be more modern construction than seen in 1949.

These appear to be more modern than elevators built in 1949.

The two older elevators at Paullina are concrete, but they do not seem to follow the protocol of a continuous pour. The newer-looking elevators deserve a closer look, in spite of their unfamiliar lines–particularly the smaller one on the left. Tillotson Construction set a precedent in 1947, when they built a rectilinear-styled elevator at Minneapolis, Kan.

Perhaps the old Tillotson elevator outlived its usefulness and no longer stands? We don’t know.

Reader input is welcome!



This elevator resembles some of Tillotson's early efforts, and seems to be a good candidate

This elevator resembles some of Tillotson’s early efforts and seems to be a good candidate

Abraham Tillotson, who fought in the Revolution, was too wealthy for a pension

by kocart



The Tillotson family was adept at seizing opportunities such as the demand for grain storage in the 1940s.

The Tillotsons were adept at seizing opportunities, such as the demand for grain storage in the 1940s.

Story by Kristen Cart

Abraham Tillotson, the direct ancestor of Charles H. Tillotson, the builder of wooden grain elevators, joined the Continental Army in 1775 and served for more than a year, earning the grateful thanks of our new nation. After the war he became a farmer, but in old age he asked for a pension based upon his service.

In 1818, Congress authorized pension payments for veterans who had fallen on hard times. It was not until the 1830s that the pensions were offered to widows and orphans. Veterans had to prove their service (inconveniently, the British burned all of the Revolutionary War service records held in Washington during the War of 1812). To that end, they had to produce witnesses to their service. They also had to prove that they were poor and unable to care for themselves.

Sometimes, veterans navigated the rules adroitly and obtained their pensions without much trouble, and retired in relative comfort. Sometimes it took years for them to prove their service. And sometimes, many letters flew back and forth before a grudging pittance was approved–enough to usher the elderly veteran quietly to his grave.

Abraham’s pension file, digitally preserved at Fold3.com, provides an amusing counterpoint to the usual, sorrowful packet of letters.

Page 4-1

On Oct. 9, 1819, Abraham Tillotson, a resident of Casenovia, aged 63, appeared before the Court of Common Pleas in Madison County, New York to make his statement of service. He said he enlisted on Dec. 18, 1775, serving in Capt. Levi Wells’ company, Col. Samuel Wylie’s Regiment, in the 22nd Connecticut Line of Continental Establishment. He was discharged at Fishkill, New York, on Jan. 1, 1777. He had fought in the Battles of Flatbush and Long Island, and at the taking of General Burgoyne. He produced a witness to his service in the person of Henry Champion.

According to the court, Abraham’s statement averred that “he is in reduced circumstances and stands in need of assistance from his country for support.” Apparently, Abraham had no trouble getting onto the pension rolls. His trouble came later.

Abraham’s consternation was evident in the letter he wrote on July 11, 1822:

“… I am informed of the suspension of my pension until I produce satisfactory evidence doing away [with] information received at the War Department of my being ‘worth more than five to six thousand dollars.’ From whatever source this information may have been received, it is totally false, without a shadow of foundation, and must have been engendered in the brain of some malicious and corrupt villain. The information indirectly charges me with false swearing and if I knew the malicious informant, I would (as I did the enemies of my country) chastise him for his audacity, old and infirm as I am.”

He went on, protesting his honesty: “In obtaining the bounty of my country, for which I fought and bled (when, probably, your informant was in his cradle), I pursued an honest correct course and such as prescribed by the love of my country…”

He was up against a formidable stack of evidence to the contrary.

The Honorable E. Litchfield was the first to alert authorities to Abraham’s wealth, after he learned that Abraham Tillotson was worth between five and six thousand dollars. Abraham’s pension was suspended from that date, Dec. 6, 1821.

Page 42

Further investigation yielded more.

“State of New York,

We, the subscribers, freeholders and inhabitants of the town of Cazenovia in the County of Madison and of the town of Pompey in the County of Onondaga and state aforesaid, do certify–that we have been acquainted with Abraham Tillotson of said Cazenovia for a number of years–that we have lived and do still live [as] neighbors to him–that we have considered him one of our most independent farmers, one who has money to loan, whenever he can obtain extravagant interest, or dispose of some property at a high price and obtain good security–that his property year before last was valued by the assessors at about eighteen hundred dollars–and further we consider him the said Tillotson abundantly able to support himself and family–and under the existing law authorizing the payment of pensions do not think him entitled to a pension–given under our hands this 21st day of August 1822.

Rufus Lyon, Joseph Atwell, Daniel Allen, James McCluen, Joseph Atwell Jr., Elijah Hill.”

Whoops.

Other affidavits contain the same sort of accusations. Needless to say, Abraham never recovered his pension. He died two years later in 1824. His widow tried to reinstate his pension in the 1830s, also to no avail.

Page 33

Abraham offered to pay Rufus Lyon, one of his accusers, to testify in his favor

So began a Tillotson tradition of success and wealth, of sharp business dealings, and of a willingness to partner with the U.S. Government when advantageous–a perfect template for the private/public partnership that became the grain elevator boom of the 1940s and 50s. I would be quite proud of such a clever ancestor, notwithstanding a bit of shading of the truth. His neighbors (debtors?) might not quite agree.



The Atlanta, Kan., elevator suggests our grandfathers’ signature designs

by baggyparagraphs



AtlantaKansas

Photo by Brad Perry

Editor’s note: Contributor Brad Perry sent this photo of Valley Coop’s elevator in Atlanta, Kan. The rounded, stepped headhouse suggests Tillotson and Mayer-Osborn design influences. A call to the elevator put us in touch with Katherine Grow, who runs it with her husband Darren.

“I think it’s a Johnson house. I remember when they built it. All the men in the community helped when they started pouring. Markle was the head of the crew that did it. I think it was ’58 or ’59 when it was constructed. In fact, it’s better designed than a lot of places. We added an outside leg. We used to load out on the rail but don’t any more. We’ve done maintenance and made safety updates. We’ve had it painted once. We were told it is the kind of concrete that has to be kept painted. It’s easy to work with, the way it’s put together with the inside leg. We’ve been pleased with it. I was a teenager or preteen when they built it. Once started, they kept pouring. With the lights at night, it reminded you of when you see a riverboat all lit up going down the river. It was cool. When we built this other bin and they could do it in sections, it was kind of different. They just pour so much and go round and round with a little cart, and come night, why, they’d quit and go home.”
