Category Archives: J.H. Tillotson, Contractor

J.H. Tillotson, Contractor, was a Denver construction firm specializing in grain elevators.

1947 clipping gives details of the impressive Potter, Neb., elevator by J. H. Tillotson, Contractor

by baggyparagraphs

The Nebraska State Journal (Lincoln, Nebraska), Sunday, Feb. 16, 1947

POTTER, Neb. (AP). One of Nebraska’s largest grain elevators–a quarter-million bushel structure of reinforced concrete–will be built here this spring.

The huge elevator is expected to be completed in time for the 1947 harvest season in the wheat-rich panhandle. The first dirt will be turned in March.

The Potter Co-Op Grain company, which will build the structure, said it will be on the Union Pacific right-of-way about two blocks west of the Potter depot. Contract has been let to the Tillotson Construction company of Denver. Estimated cost of the elevator is $100,000.

* * *

STEEL ALREADY is being delivered at the site. The elevator will be about 130 feet high and will be built in one compact unit containing 26 individual storage bins. A gravity feed storage system and other new operating features will be installed.

Normal capacity of the elevator will be 225,000 bushels but storage up to 256,000 bushels will be possible. The Co-Op also will retain control of the 16,000 bushel elevator it already is operating here.

* * *

FUNDS WERE borrowed from farmers in this area under a plan whereby the lender gets 1 1/2 bushels of reserved storage for each dollar invested up to a maximum of 7,500 bushels. The storage space will be reserved during the peak harvest season at a time when many farmers are forced to pile their wheat in the open.

Huge scales capable of handling a truck and semi-trailer loads up to 50 tons will be installed.

The Potter Co-Op serves one of the state’s largest wheat territories including farms in Cheyenne, Kimball and Banner counties. It has more than 400 patrons.

Aside from a larger structure at Chappell, which has a storage capacity of close to 300,000 bushels, the new Potter elevator will be the largest in western Nebraska.

A look at the Johnson-Sampson elevator in Grand Island, Nebraska

by kocart

dsc_1517

Kristen Cart

Sometimes it is instructive to visit an elevator built by one of the competitors of the Tillotson Construction Company of Omaha, Neb., and its offshoots, J. H. Tillotson, Contractor, of Denver, Colo., and Mayer-Osborn Construction, also based in Denver. The elevator built by Johnson-Sampson in Grand Island, Neb. is a good example, for comparison, of a project built by the competition while our grandfathers were active in the business.

One of our readers, Teresa Toland, mentioned the elevator and hoped that we knew something about it, since her father, Darrell Greenlee, had supervised its construction. A couple of years passed before I could follow up on her query. While traveling this fall, I took a detour to see the elevator and take photos. The old grain elevator stands now as a prominent Grand Island landmark, still serving its original purpose. It’s location, just off I-80 in central Neb., made it easy to visit.

The elevator hummed with activity at the height of harvest. On this trip, my dad, Jerry Osborn, was along, so I did not take time to interview the employees–we were all tired after our hunting trip, and were ready to get home. But the elevator was a lovely sight and I was glad for the chance to see it.

dsc_1526The original elevator, flanked by two annexes, was obscured behind a large modern concrete bin, so I got closer for a better look. The headhouse was unlike any I had ever seen. The elevator’s design formed a harmonious whole, much like the attractive Tillotson elevators its builder emulated, but it had taken a different direction and had its own look. It must have been a handsome sight when it stood alone, brand new, and gleaming white–the tallest thing around.

The bin arrangement for the old elevator seemed conventional for storage in the 250,000-bushel class. Adjacent to the main house stood a large capacity metal grain dryer. Including the annexes, the elevator complex was the size of a moderate terminal–the type of storage that would serve as a transit point for a rail or trucking hub.

When Virgil Johnson, an early employee of Tillotson Construction, went out on his own, he built elevators in partnership with his Sampson in-laws for a few years. Darrell Greenlee, who supervised the construction at Grand Island, was one of his superintendents.





The elevator and its Tillotson annex preside in sleepy Dike, Iowa

by kocart

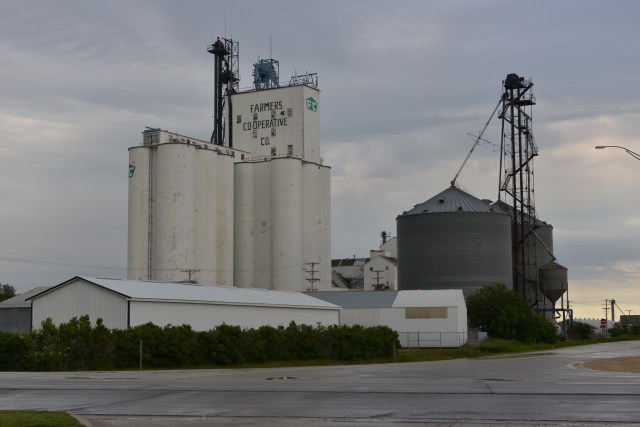

The old elevator sits beside its wooden predecessor, as it did in 1946

The old elevator sits beside a wooden elevator, as it did in 1946

Story and photos by Kristen Cart

We took a number of elevator detours on our return home from a Nebraska trip, where we delivered our daughter to her summer veterinary camp. During the four-day program presented by Oxbow Animal Health, she learned the inner workings of a cow, and lovingly operated on and sutured a stuffed bunny. Apparently there is no such experience offered to children in Illinois.

The trip home was a meandering route with a number of switchbacks, with elevators built by Tillotson Construction, of Omaha, spaced every few miles. One elevator stop on our sojourn was Dike, Iowa, in the central part of the state. This fascinating site was the last one we saw before the light failed. We were racing a line of weather, and as the sun sank the clouds built and made for very flat light.

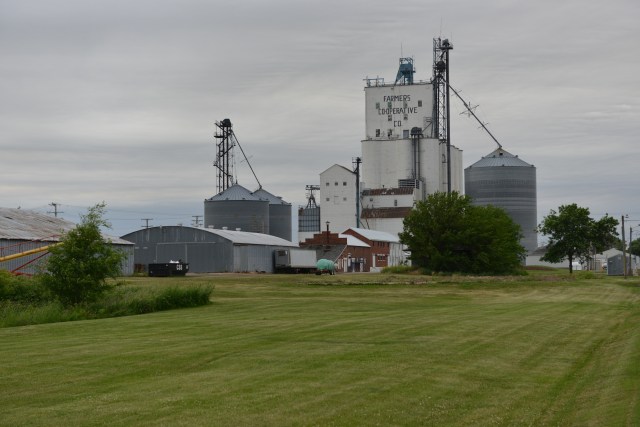

DSC_0721It is enlightening to see an elevator complex in person and compare it with an early photograph. The changes wrought in almost seventy years can be surprising, but even more unexpected can be the features that remain the same.

At Dike, you immediately notice a wooden structure behind the main structure. Strangely, it does not appear to be the same elevator that appears in the old photograph. Why would the co-op replace a wooden elevator with another one? The obvious answer would be a fire, but if wood was obsolete, why continue to build with that material?

In my travels, I have rarely come across a wooden elevator that was built before the 1940s and still in use today. Technology rendered the old ones obsolete, and wear and tear made them difficult to operate. Fire also took many of them. Now, wooden elevators built as late as the 1970s are coming down as more valuable uses are found for their wood, and as regulations make them harder to license.

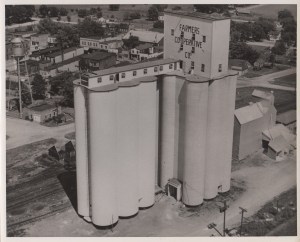

The main house of Tillotson Construction's elevator at Dike, Iowa, built in 1946 (annex, left, 1949), is crowned by a rectilinear headhouse.

The main house of the elevator at Dike, Iowa, built in 1946 (Tillotson Construction’s annex, left, 1949), is crowned by a rectilinear headhouse.

Dike’s concrete elevator was built in 1946, and it came with an unusual (for Tillotson) headhouse. In the one place where we found a similar example, at St. Francis, Kan., the elevator built by J. H. Tillotson, Contractor, sported a rectilinear headhouse. Though it was replaced much later, early pictures show that the St. Francis headhouse was built in that style.

Both the old Omaha company and its later offshoots preferred curved architecture because it was more economical to build.

So the Dike elevator was a non-typical construction, and we know from its early photo that it started out that way. Since we have no record of it in our Tillotson company records, we have to assume it was built by another company. But the Omaha company led by Reginald Tillotson built the annex.

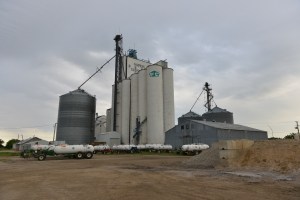

DSC_0702Tillotson Construction arrived on scene in 1949 to add the annex just three years after the main house was built. In the late 1940s, when elevators were filled just as fast as they could be built, annexes sprung up almost before the concrete cured on the original elevators.

The Dike, Iowa, annex specifications

Capacity per plans (with pack): 200,700 bushels

Capacity per foot of height: 1,859

Reinforced concrete per plans (total): 1,255 cubic yards

Plain concrete (hoppers): 3 cubic yards

Reinforcing steel (including jack rods): 73.56 tons

Average steel per cubic yard of concrete: 117.2 pounds

Steel and reinforced concrete per plans:

Below main slab: None

Main slab: 23,665 pounds steel and 218 cubic yards concrete

Drawform walls: 94,152 pounds steel and 880 cubic yards concrete

Work and drying floor: None

Deep bin bottoms: None

Overhead bin bottoms: 18,156 pounds steel and 56 cubic yards concrete

Bin roof: 4,223 pounds steel and 32 cubic yards concrete

Scale floor: None

Distributor floor: 3,570 pounds steel and 30 cubic yards concrete

Cupola roof: Steel included in above amount, and 21 cubic yards concrete

Misc. (Boot, leg, head, track sink, steps, etc.): 500 pounds steel and 4 cubic yards concrete

Attached driveway (for Dike plans, lower tunnel indicated here): 363 pounds steel and 14 cubic yards concrete

Construction details

Main slab dimensions: 46 1/2′ x 68′

Main slab area (actual outside on ground): 2,955 square feet

Weight reinforced (total) Concrete (4000 pounds per cubic yard) plus steel: 2,583 tons

Weight plain concrete (hoppers 4000 pounds per cubic yard): 6 tons

Weight hopper fill sand (3000 pounds per cubic yard): 25 tons

Weight of grain (60 pounds per bushel): 6,021 tons

Weight of structural steel and machinery: 5 tons

Gross weight loaded: 8,640 tons

Bearing pressure: 2.93 tons per square inch

Main slab thickness: 24″

Main slab steel (size and spacing): 1″ diameter,  5 1/2″ o. c.

Tank steel and bottom–round tanks (size and spacing): 5/8″ diameter, 9″ o. c.

Lineal feet of drawform walls: 400′ (no drive)

Height of drawform walls: 120′

Pit depth below main slab: None

Cupola dimensions (outside width x length x height): 13′ x 93′ x 8′

Pulley centers: None

Number of legs: None

Distributor Floor: None

Track sink: None

Full Basement: Yes

Electrical room: In elevator

Driveway width: None

Dump grate size: None

Columns under tanks: 4 columns 16″ square

Boot Leg and Head: None

Machinery details

Top conveyor: 30″ belt at 500 bushels per minute; 7,800 bushels per hour; 10 horsepower drive; Howell tripper.

Bottom Conveyor: 24″ belt at 600 bushels per minute; 5,800 bushels per hour; 7 1/2 horsepower drive

Remarks

Also built: Extended driveway on elevator



























A photographic review of concrete elevator parts and components

by kocart

Story and photos by Kristen Cart

Some time ago, one of our readers requested the picture of an elevator pit. It is one of the more unglamorous parts of a grain elevator, but as I was going through old photos, I found one. I also found many interior elevator pictures that have not made it to the blog because of their, well, unattractiveness. But a review of the parts and pieces, terms and descriptions, and interior appearance of an elevator is in order.

 The Pit

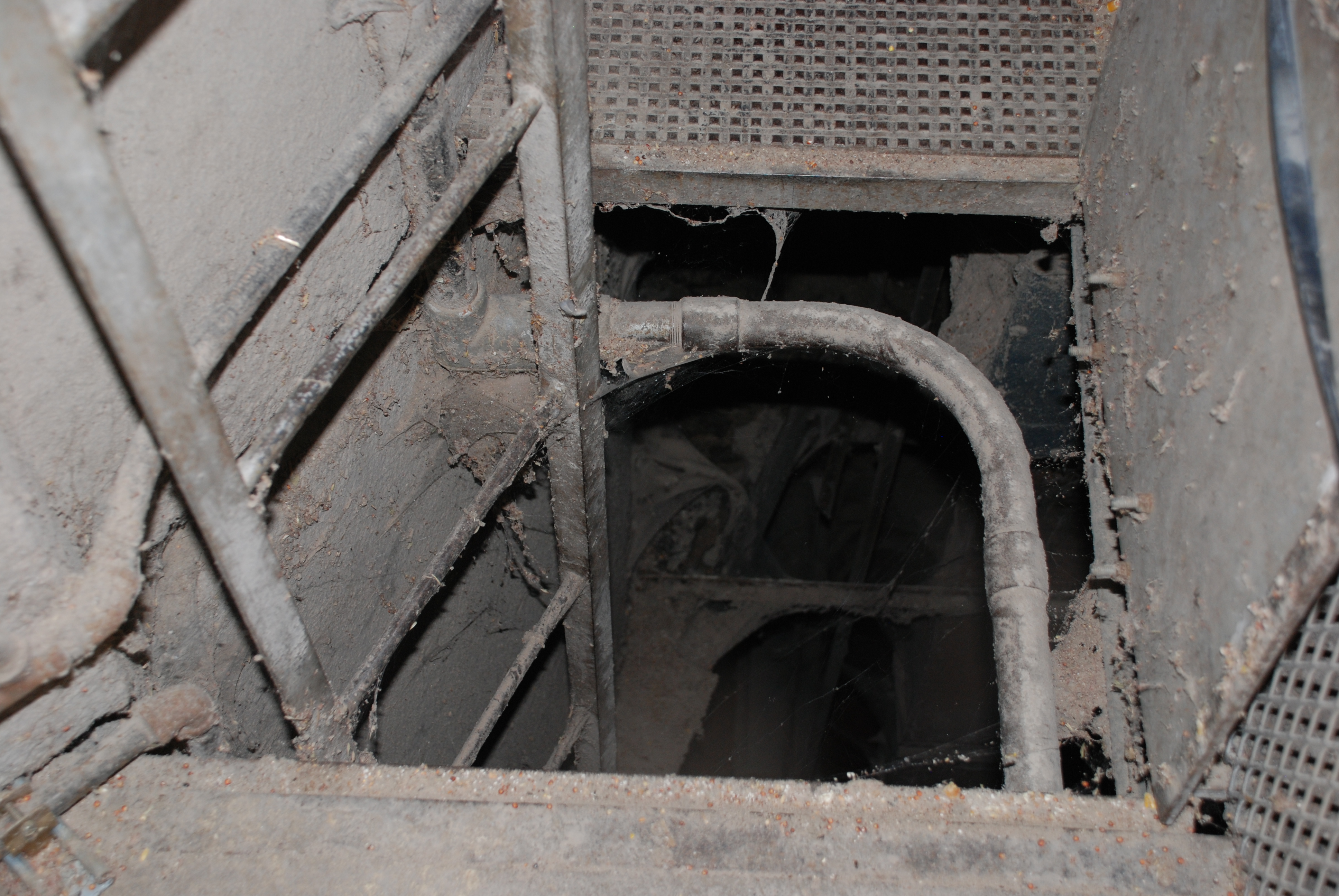

Pit access by ladder. The leg is visible.

Pit access by ladder. The leg is visible. Hanover, Kan.

DSC_0677(2)

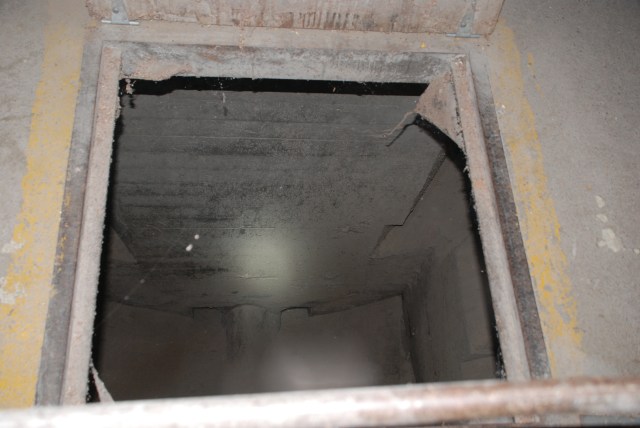

Sloped bottom funnels grain to the base of the leg.

The Dump Grate

DSC_0674(2)

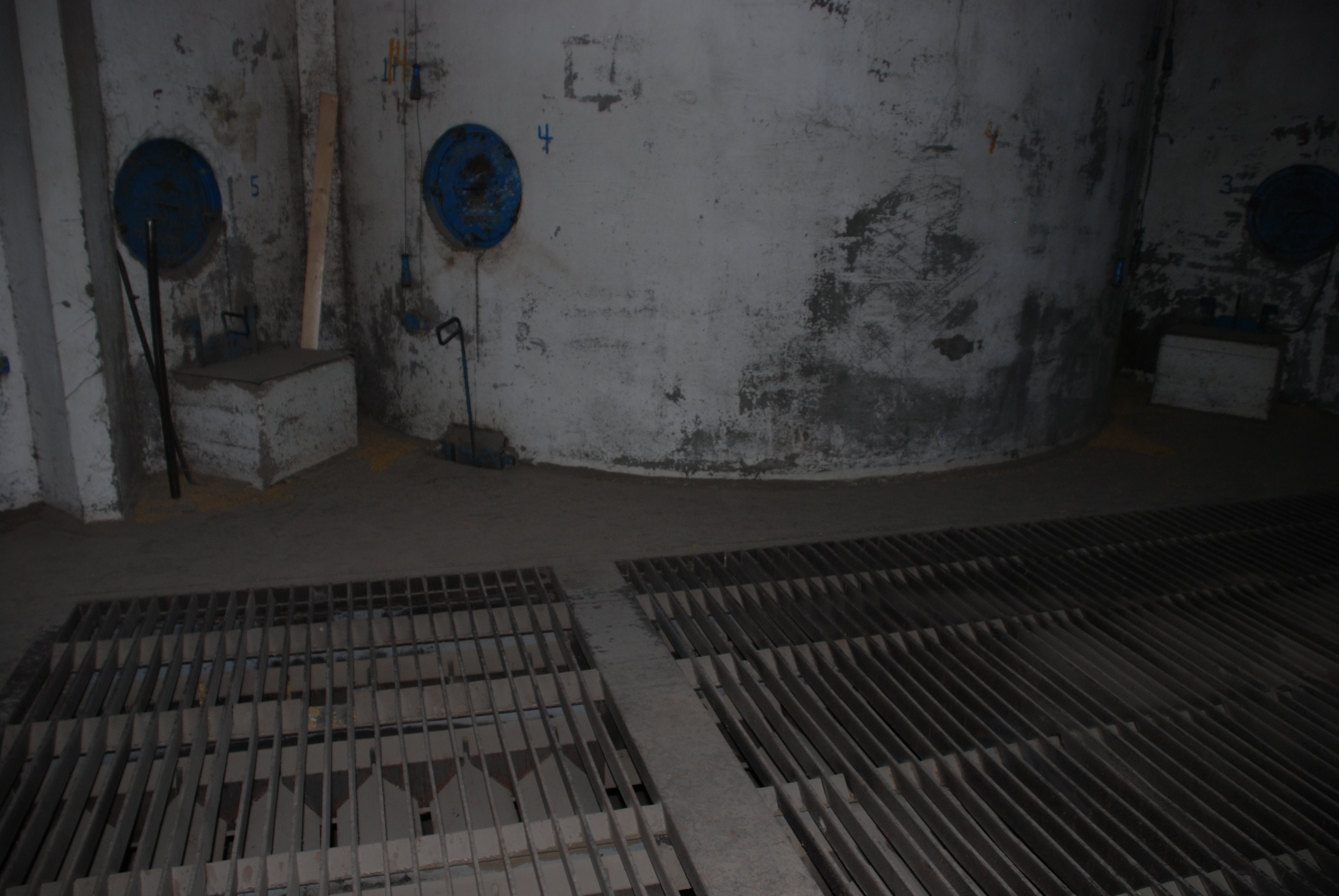

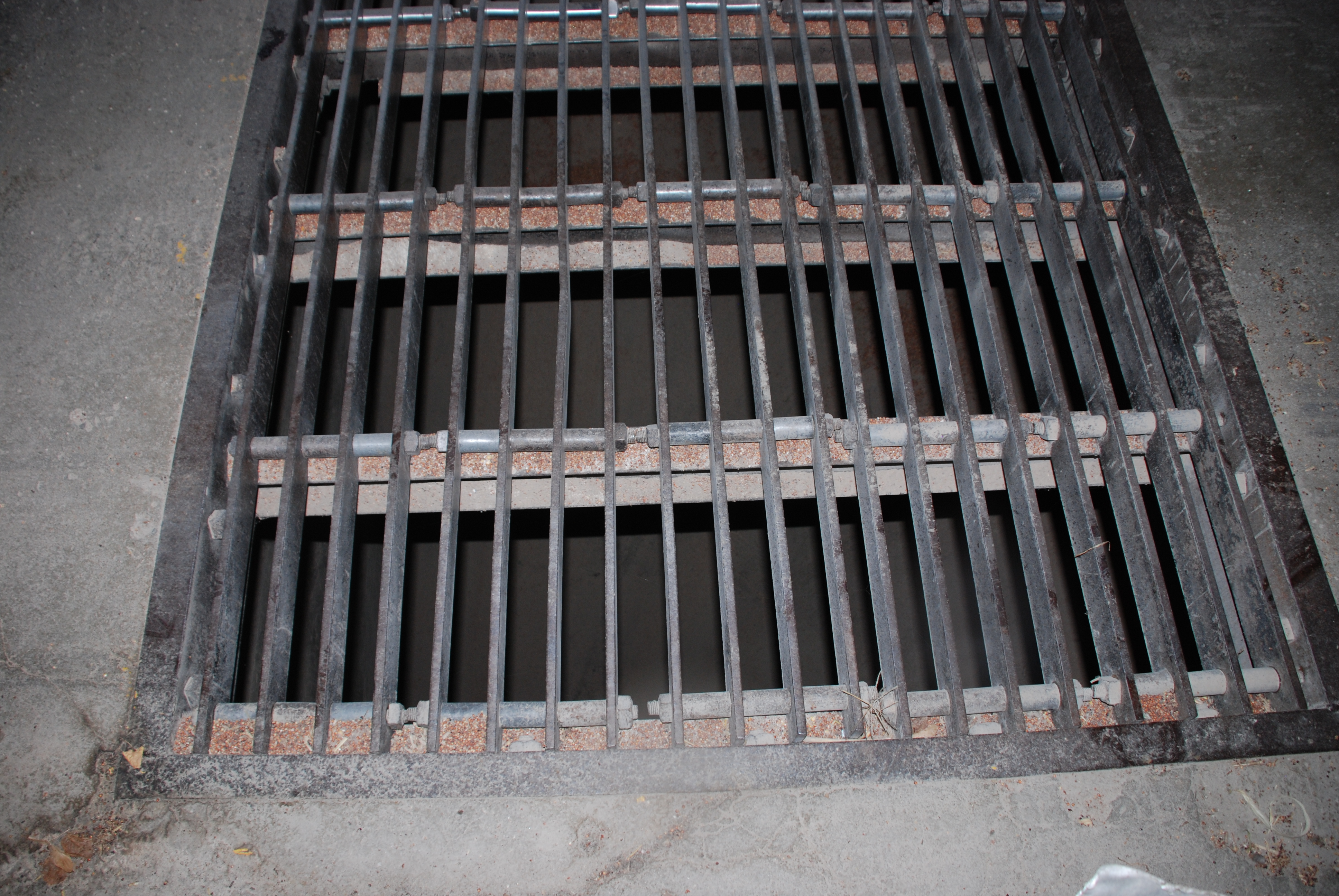

A smaller grate.

DSC_0292(1)

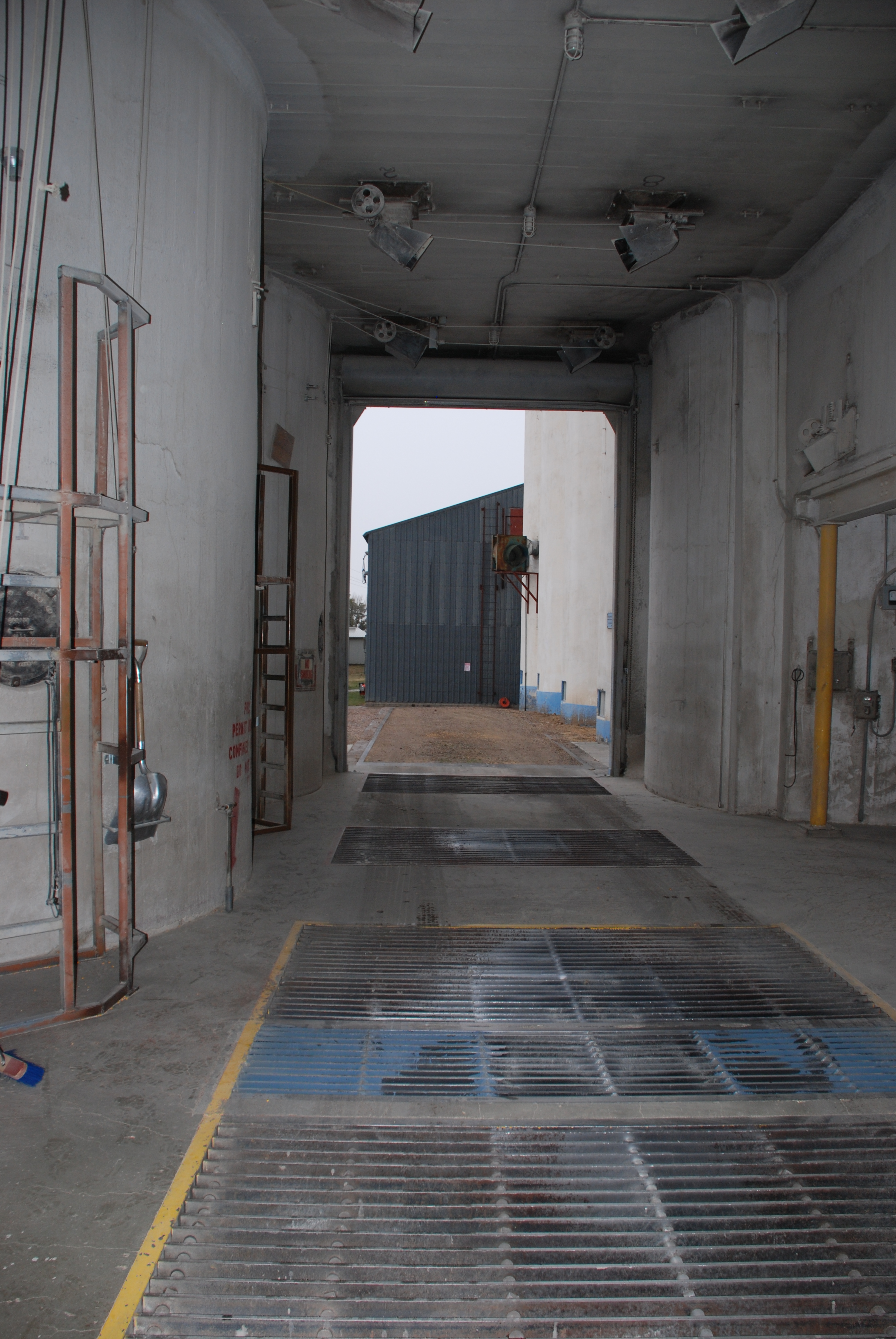

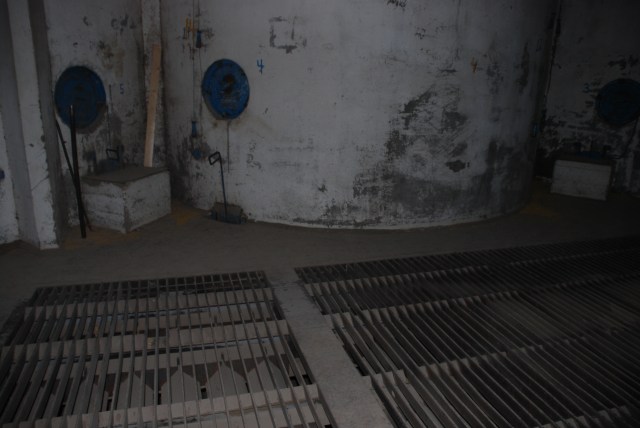

Center driveway truck grates.

The Driveway

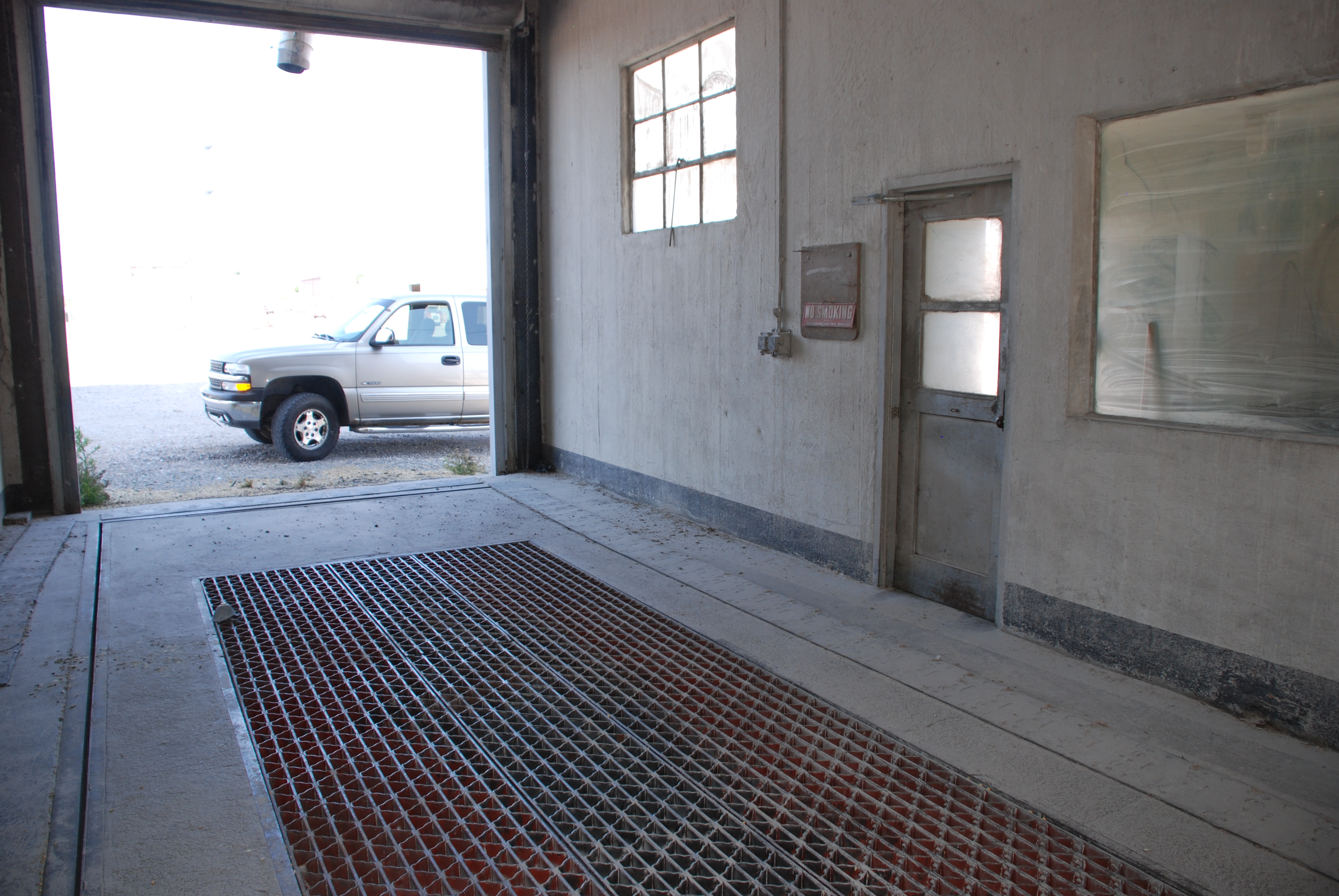

DSC_0410

McCook, Neb.

DSC_0208(1)

St. Francis, Kan.

The Man Lift

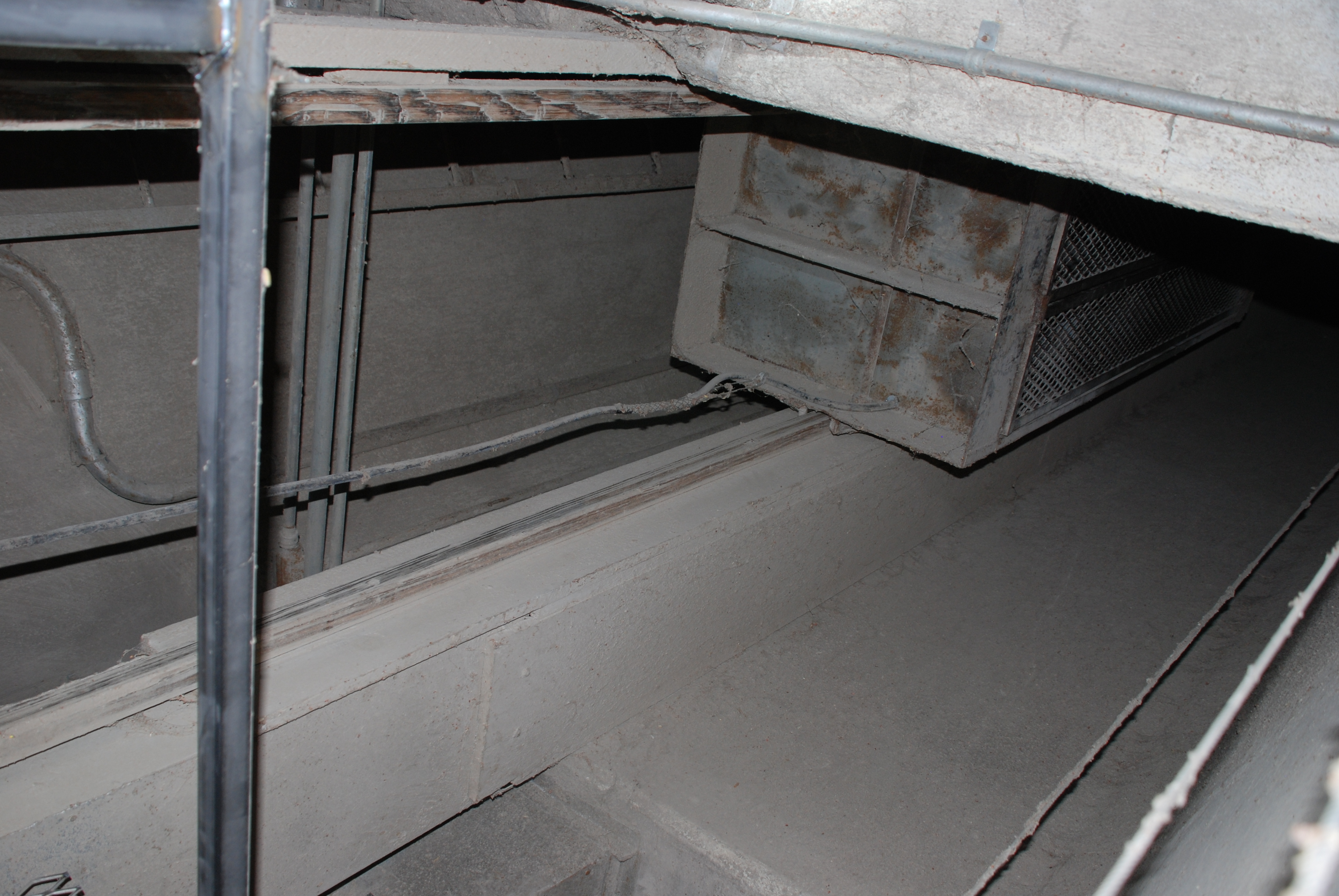

DSC_0679(1)

The bottom of the lift showing the shaft.

DSC_0210(1)

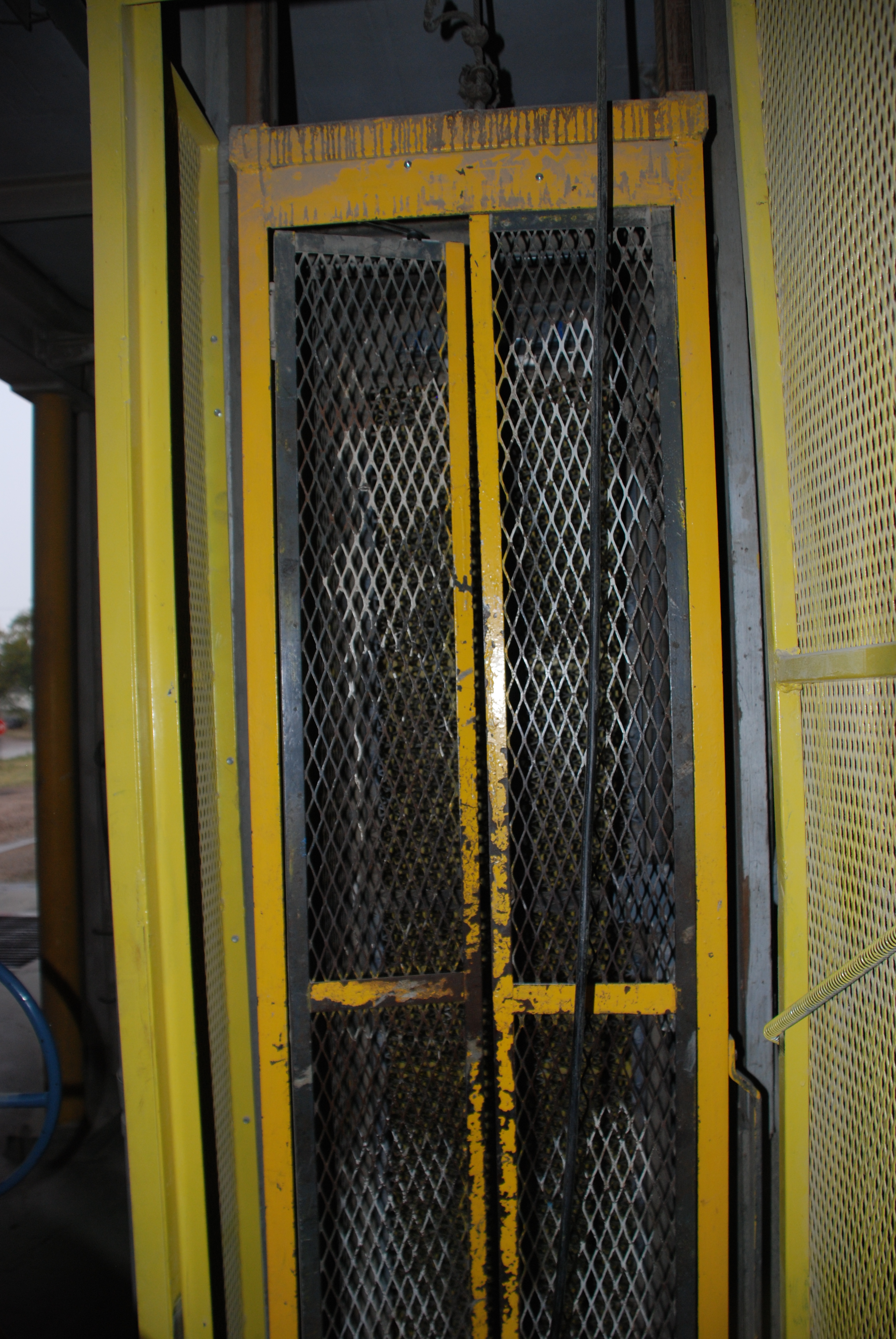

Current safety regulations require a retrofitted cage.

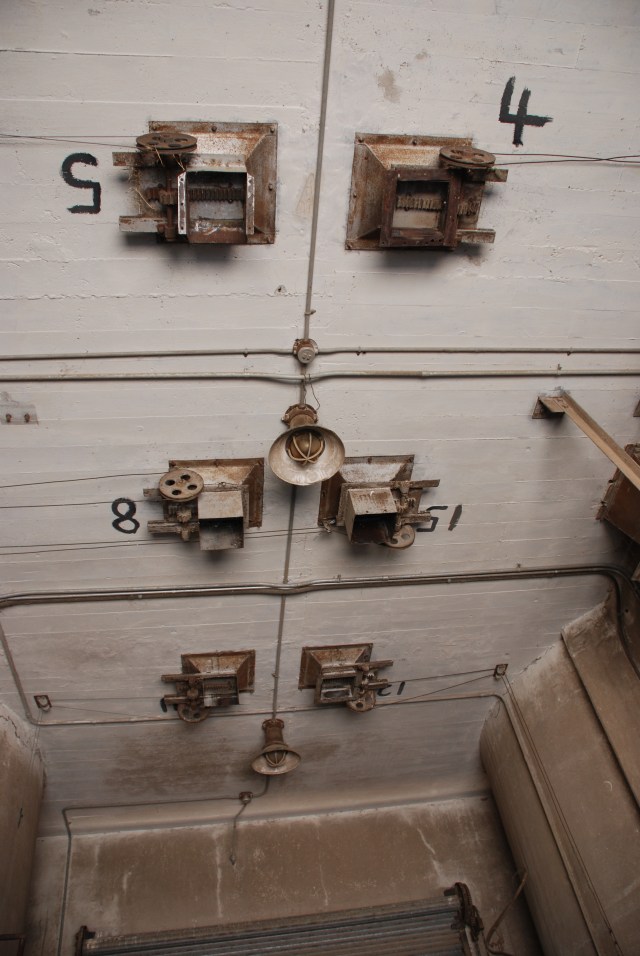

Overhead bin spouts

Bins are numbered to correspond with the bin diagram

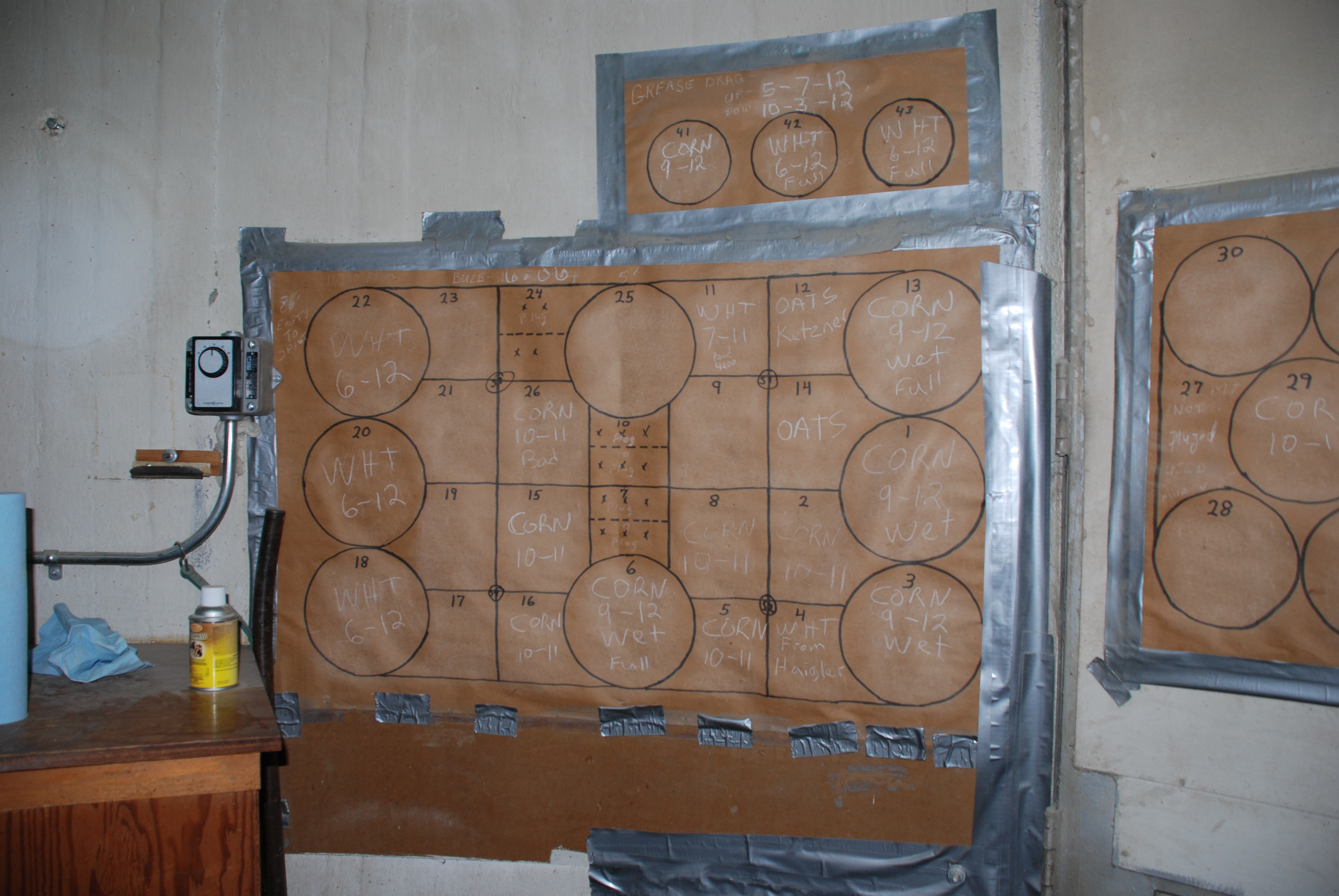

Bin Diagram

St. Francis, Kan.

St. Francis, Kan.

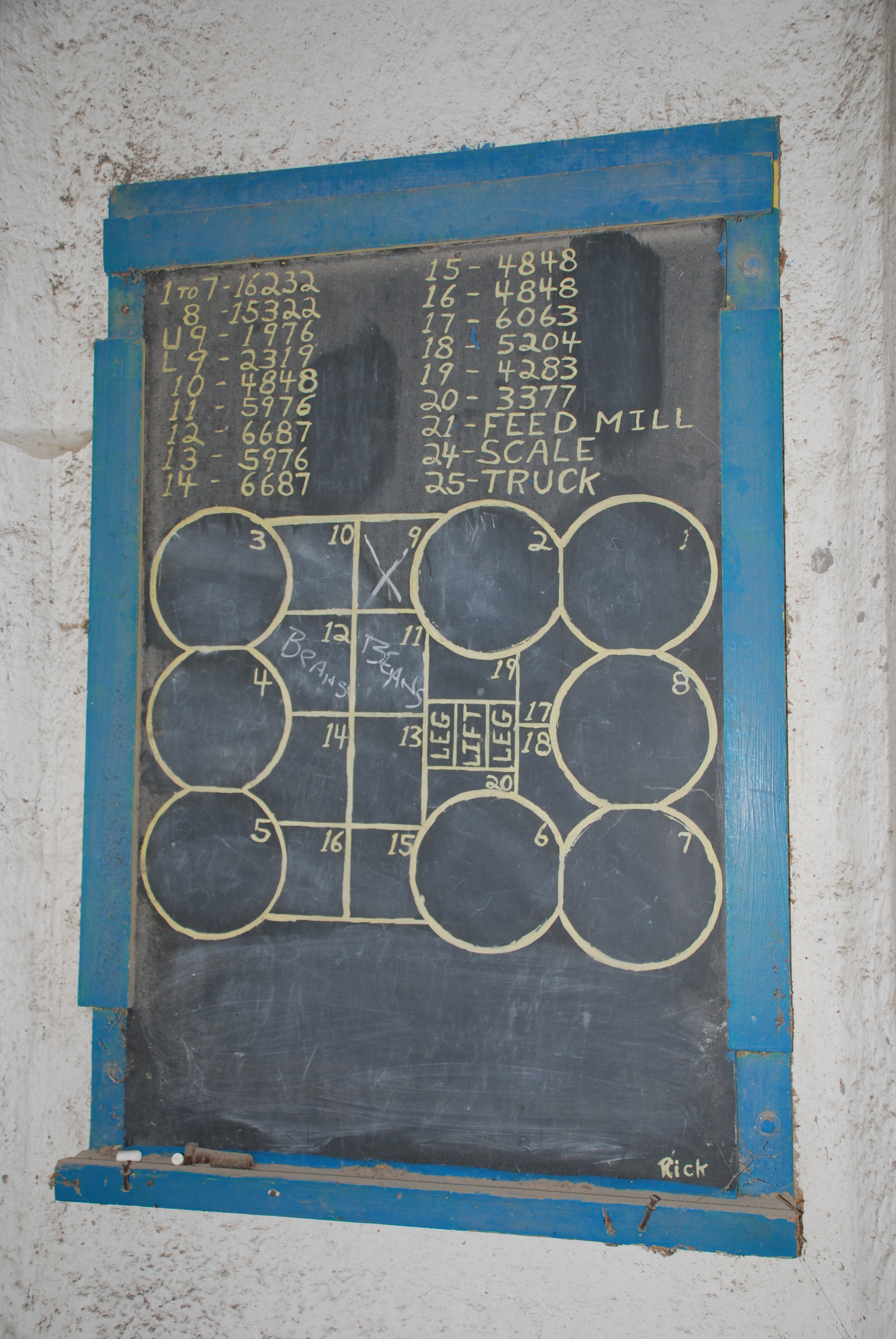

DSC_0295

This elevator holds beans in two overhead bins.

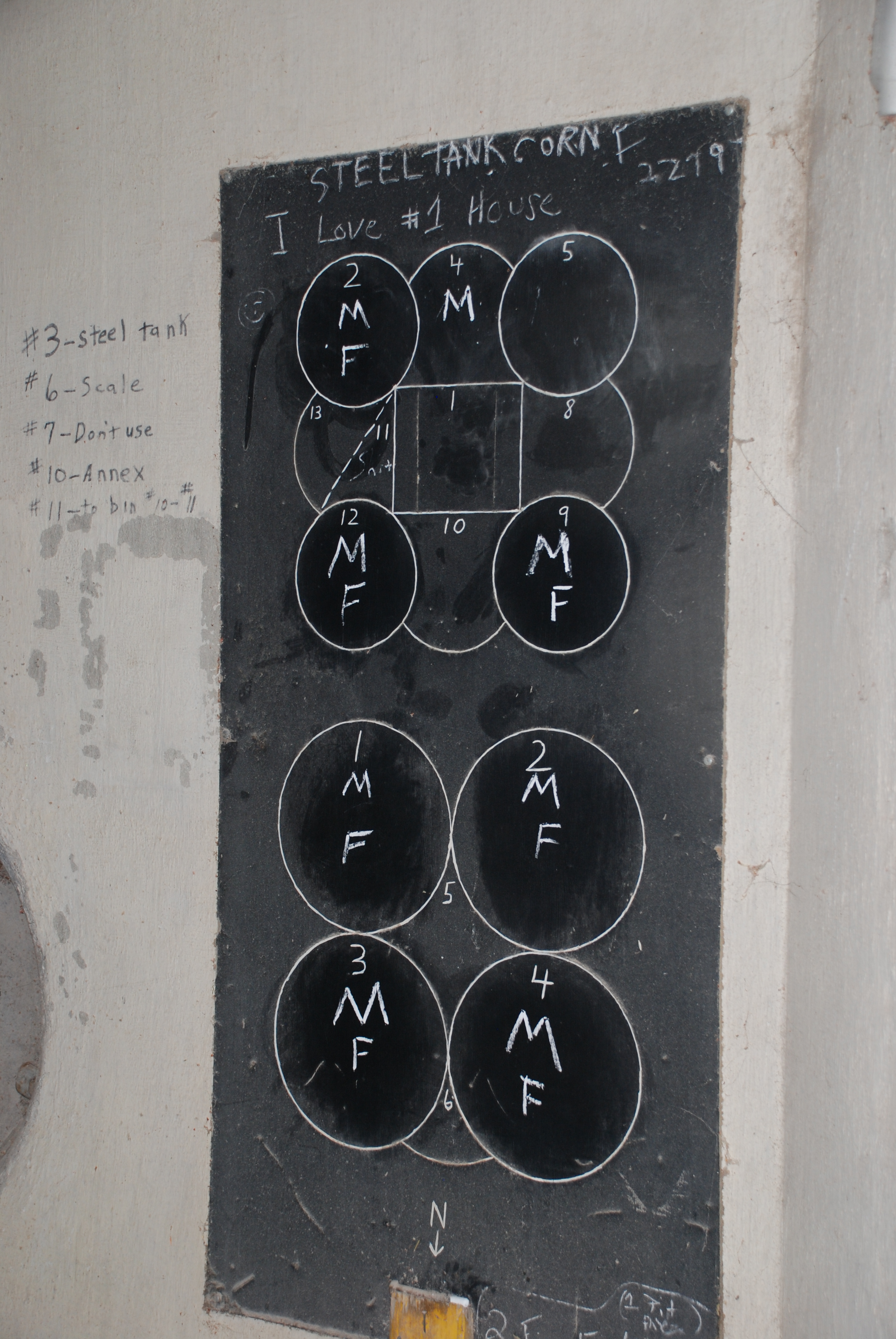

DSC_0670(1)

The bins hold milo, and “F” means the bin is full.

The Leg

DSC_0418

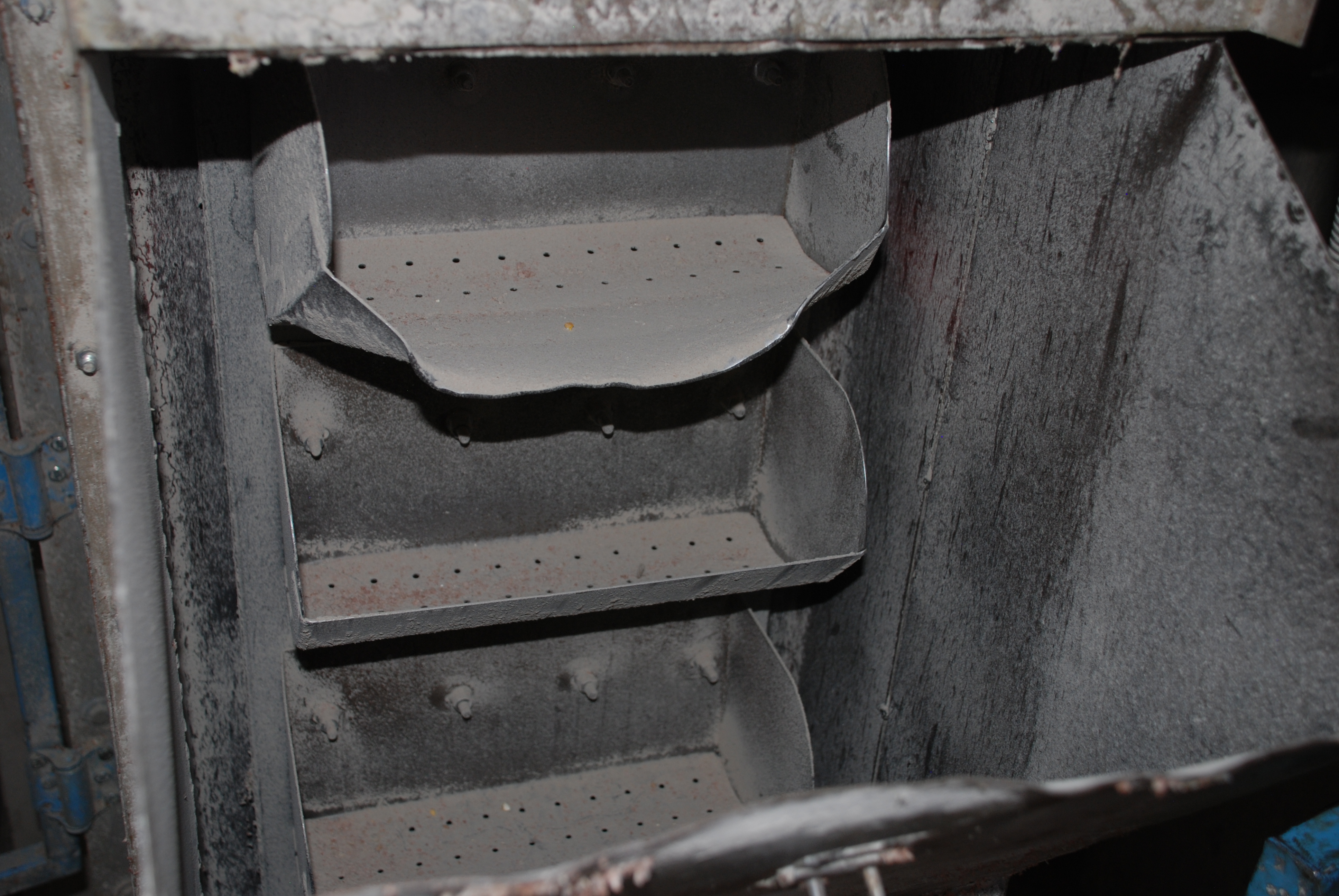

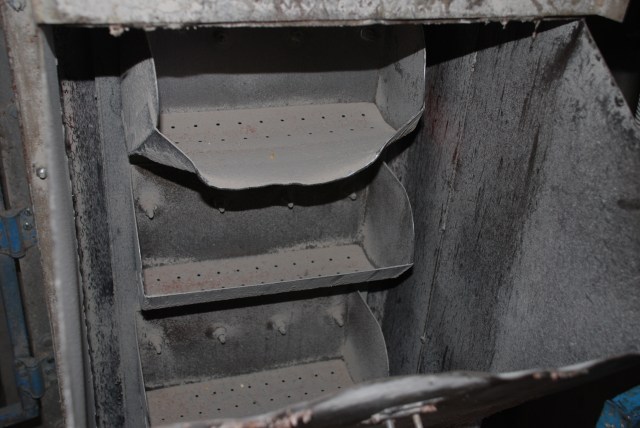

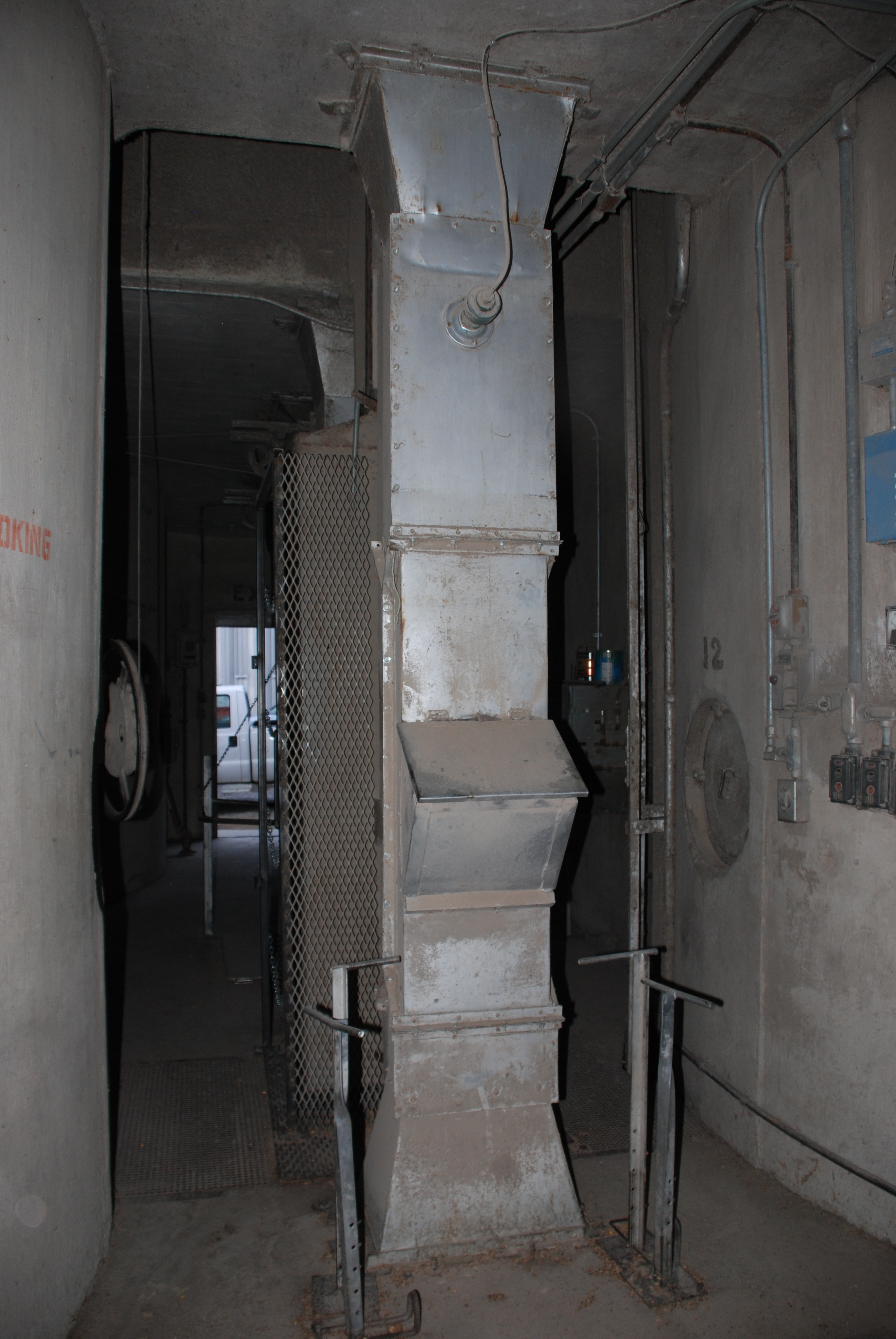

Cup dimensions and spacing are given in elevator specifications.

DSC_0673(1)

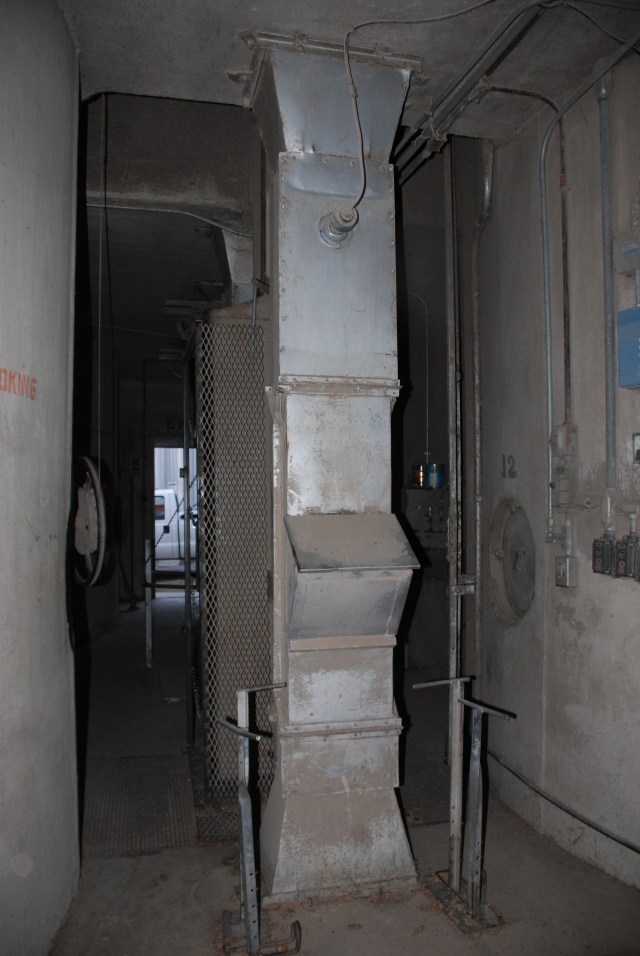

The leg conveys grain from the pit to the top of the bins.

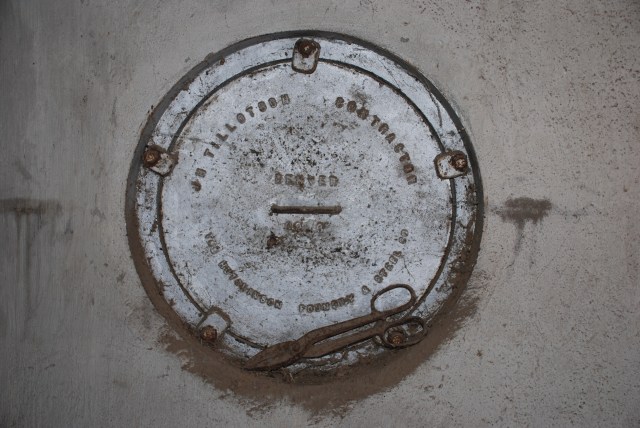

Manhole Cover

Traer, Kan.

Traer, Kan.



The 1945 vintage elevator at Lodgepole, Nebraska, and the death of Bill Morris

by kocart

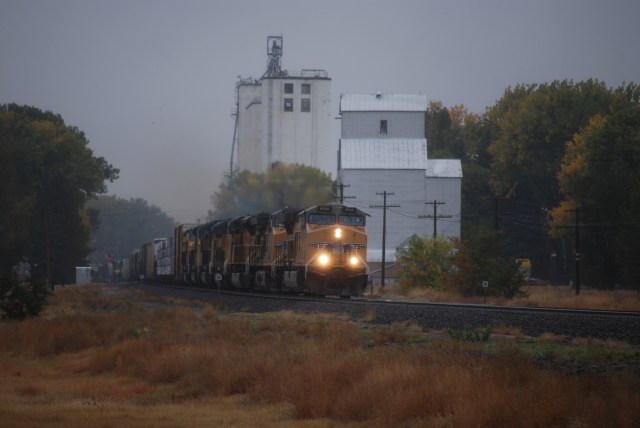

DSC_0446Story and photo by Kristen Cart

A newspaper article recently came to light that upended our elevator construction timeline, causing us to reconsider the story of the Lodgepole, Neb., elevator and the careers of Joseph H. Tillotson and my grandfather William Arthur Osborn.

My dad, Jerry Osborn, said that the death of Bill Morris, the superintendent on the Lodgepole job, and that of Joe Tillotson, the owner of J. H. Tillotson, Contractor, came within a month or so of each other. Now it appears likely that the season was the same, but both fatal car accidents occurred in different years–1945 and 1947–a fact easily misunderstood by the young boy my father was at the time, as he listened to the adults talk about business.

elevator021

We believe this photo by William Osborn is from Lodgepole, Neb.

The article appeared in the Nebraska State Journal on Oct. 8, 1945:

Omahan dies after car accident

SIDNEY, Neb. (AP). W. B. Morris, 36, an employee of the Tillotson Construction company, of Omaha, was fatally injured Saturday night when struck by a car driven by Howard B. Kirk, 48, of Lodgepole, Neb., Deputy Sheriff Arnold Braasch said Sunday.

The deputy sheriff reported Morris was changing a tire on his car about ten miles east of here when the accident occurred. He died in a hospital about five hours later.

Braasch said Morris’ home was in Texas, but that he was living in Lodgepole while working on the construction of a new grain elevator.

County Attorney R. P. Kepler said he will decide on Monday whether an inquest is to be held.

We attributed the Lodgepole elevator’s construction to J. H. Tillotson, Contractor, the independent company Joe Tillotson started after his parting of the ways with Tillotson Construction of Omaha. We wrongly believed that both Bill Morris and Joe Tillotson had died in 1947 while working on the Lodgepole job. Now we know that Bill Morris died in 1945 while working for Joe Tillotson. The new fact pins down the date of Joe’s departure from the Omaha company–a move my grandfather made at the same time.

When interviewed in 1949 about his first, independent, Mayer-Osborn Construction venture in McCook, Neb., William Osborn named a number of elevators he had built before. We still believe all of the elevators Bill Osborn listed were J.H. Tillotson elevators.

According to the McCook article, Bill Osborn said the elevators in Maywood, Traer, Wauneta, and Lodgepole were built in 1945. If the reporter was right about Bill Morris’ employment, all of the 1945 elevators would be too early to be J. H. Tillotson elevators. However, none of them were recorded in the Tillotson Construction specifications and none built in the Omaha company’s style.

The reporter writing about Bill Morris’ death in 1945 was unaware of the freshly minted company Joe Tillotson had started, and wrongly identified Bill Morris as a Tillotson Construction of Omaha employee.

DSC_0369

An early photo of the Lodgepole elevator was kept at the location.

The fact that in 1945, Bill Morris went from a superintendent job at a verified Tillotson Construction project in Giddings, Tex to a superintendent position at the Lodgepole elevator job, a project demonstrably not built by the Omaha company, precisely dates the time Joe Tillotson chose to go out on his own.

The 1945 construction date of the Lodgepole elevator gives us a much more accurate understanding of the birth of J. H. Tillotson, Contractor, a venture that lasted about four years, until my grandfather built the McCook elevator for Mayer-Osborn Construction in 1949.

A tragedy took Morris in his prime, but my grandfather stepped into his place, gaining valuable experience as a builder. To this day, the graceful Lodgepole elevator serves as a fitting monument to Morris’ productive career.

Mayer-Osborn’s proposals were rejected at Wauneta, Nebraska

by kocart

DSC_0790

Mayer-Osborn Construction lost their bid to build this annex.

Story and photos by Kristen Cart

Our blog contributor Gary Rich was the first to visit Wauneta, Neb. in the hunt for elevators built by Mayer-Osborn Company and J. H. Tillotson, Contractor. He discovered that the Frenchman Valley Co-op had retained original documentation including blueprints for the original elevator, and the two annexes, which all still operate today. The various documents painted a confusing picture. Gary told me enough that I knew I needed to get down there and see for myself, which I finally did in October of 2012.

The builder of the original elevator was unclear, but presumably J. H. Tillotson had built it, based its appearance.  Mayer-Osborn soon returned with a proposal for the first annex, and a close reading of those documents seemed to indicate that the first elevator was completed by the same people, which at that time worked for the J. H. Tillotson, Contractor operation. But nothing definitive was found to that effect–even the manhole covers of the main house were blank after a renovation.

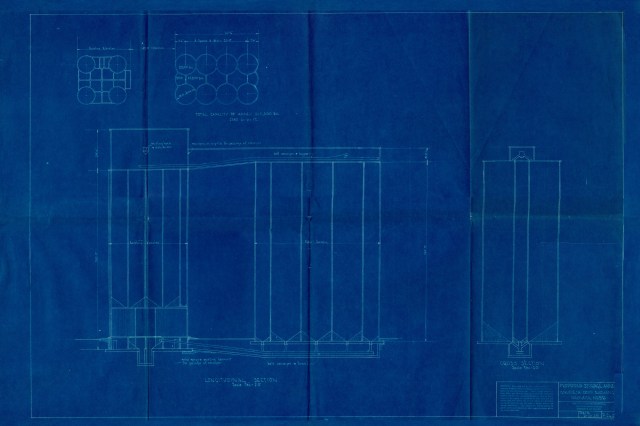

FVC BP6aThe most interesting discovery was a set of blueprints and drawings completed by Mayer-Osborn for their annex that was never built. Their proposal was submitted twice, once in 1950 and once a few years later, but the town finally decided on a different contractor after some delay. For some reason, the co-op retained all of the paperwork at the site. This blueprint, dated Feb. 17, 1950, was the first of these designs.

The co-op has retained the original written contract proposals, which will be detailed in a later post. It would be very interesting to discover what held up the original building plan. Because the annex finally went up in about 1957, it’s possible that the co-op just waited too long and built the annex after the demise of the Mayer-Osborn Company. The existing annex looks much like the original proposal. Did they show another company the plans, and ask, “How close can you come to this design?”

Related articles

J. H. Tillotson, Contractor, built their elevator scale houses with distinctive flair

by kocart

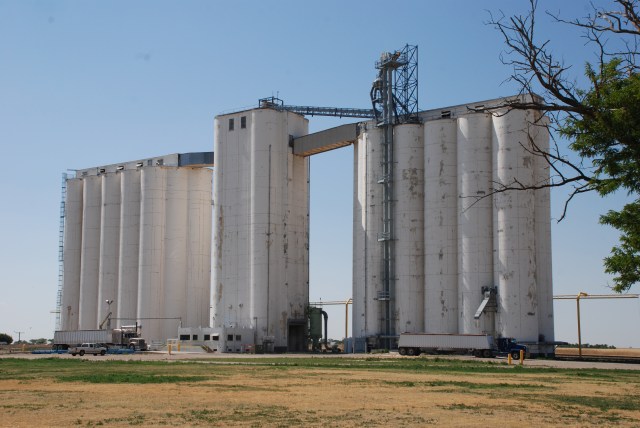

The scale house at Monument, Kan., above, is almost identical to the one at Lodgepole, Neb.

The details of the scale house at Monument, Kan., above, are almost identical to those at Lodgepole, Neb. Photo by Kristen Cart

Story by Kristen Cart

Elevator construction was driven by stringent engineering requirements, lending a degree of commonality to the buildings. A few distinguishing details could be noticed, but from a distance you would be hard pressed to determine the builder. When contractors built the accompanying buildings, however, they had free reign to build in a style they could call their own. Often the scale houses would be instantly recognizable.

Lodgepole, Neb.

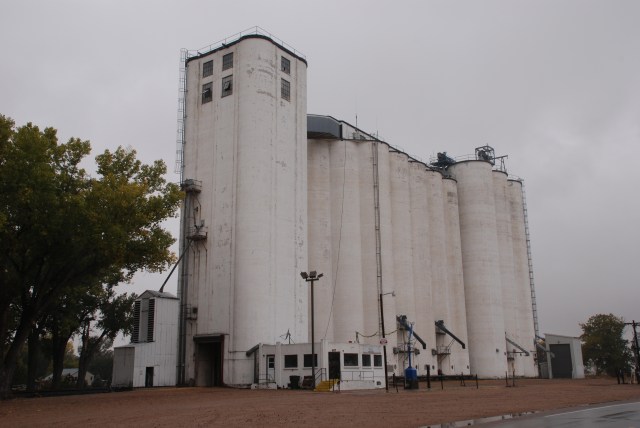

Lodgepole, Neb. Photo by Kristen Cart

J. H. Tillotson’s designs lent themselves well to the addition of a stylish scale house built alongside the main elevator. In some cases, when visiting an elevator, our access was limited. Then the lines of the scale house would be the only clue that we were looking at a J. H. Tillotson elevator.

Below are a few examples, each adapted to its individual setting, but each showing some distinguishing details that were common to all. Each J. H. Tillotson scale house was built of concrete, with a rectilinear floor plan. Usually they incorporated a protruding bay window, on the side facing the scale, for added visibility. Stairs, usually with steel railings, led to a door to accommodate truckers’ entry into the building. Carefully executed details in the concrete expressed the architect’s personal sense of style.

The scale house at the now demolished elevator at McAllister, Kan., is the only clue we have to its builder. Photo by Gary Rich

The scale house at the now demolished elevator at McAllaster, Kan., is a clue to its builder. Photo by Gary Rich

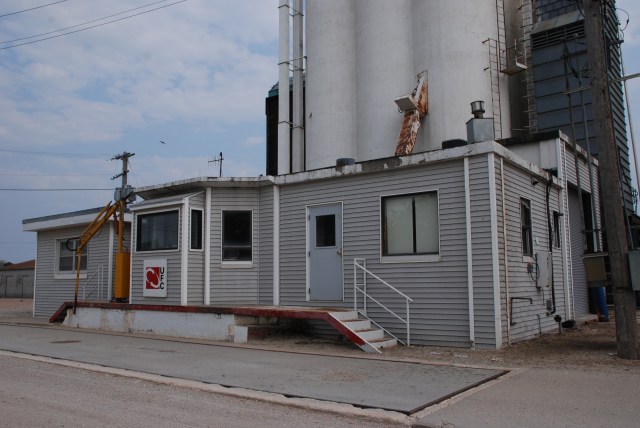

The scale house at Bradshaw, Neb. sports new siding over its concrete walls. Photo by Kristen Cart

The scale house at Bradshaw, Neb., sports new siding over its concrete walls. Photo by Kristen Cart

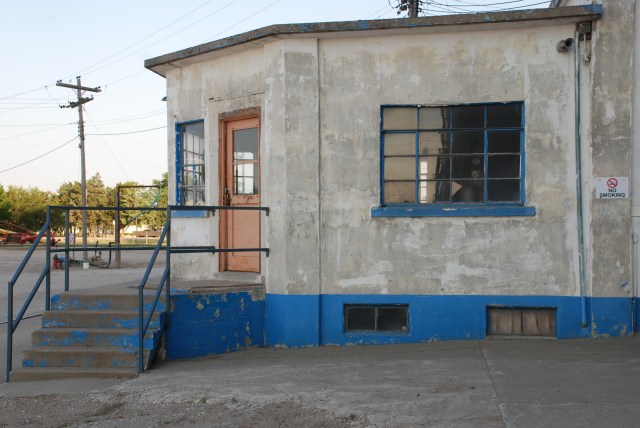

The scale-house at the Farmers Co-op, Daykin, Neb. shows characteristic corner details. Photo by Kristen Cart

The scale house at the Farmers Co-op, Daykin, Neb., shows characteristic corner details. Photo by Kristen Cart

While the builder of the elevators at McAllaster and Bradshaw has not been established with certainty, a fair case can be made that they were J. H. Tillotson designs based on details of the elevators themselves, the driveways, and the scale houses, when compared with known elevators. The scale house at Daykin, Neb., is included here for comparison.

J. H. Tillotson’s designs were visually appealing, with scale houses that contributed to a harmonious whole. When considering a builder, buyers would judge the quality of the elevator by its beauty, among other things. In this regard, J. H. Tillotson, Contractor, was more successful than most.

Related articles

Scale houses express graceful utility, epitomize contemporary style

by kocart

Daykin, Neb. scale house built by J. H. Tillotson, Contractor

Daykin, Neb., scale house built by J. H. Tillotson, Contractor.

Story and photos by Kristen Cart

An often unnoticed feature of every grain elevator is the scale house. The scale house is home to the cooperative site office, and is the place where the elevator conducts its primary business. It is usually an unassuming building where empty grain trucks pull up to be weighed before filling up. The trucks make a second visit when laden with grain, and the difference in weight is tallied in the office. Conversely, when a full grain truck pulls up to deposit its grain, it must return after unloading to determine how much has been loaded into the elevator. Inside the scale house, a small sample of the grain is tested for quality and moisture content.

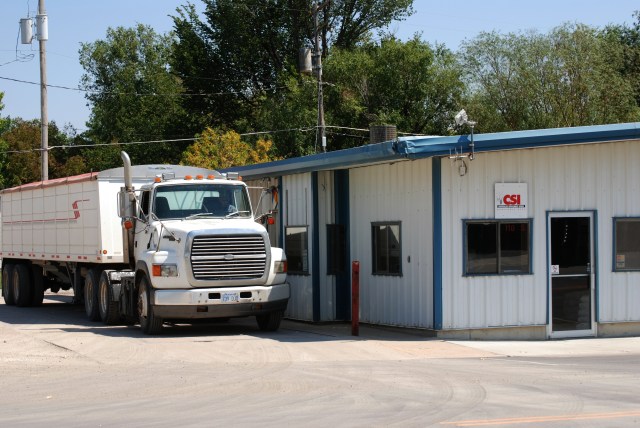

The scale house in Benton, Kan.

The scale house in Benton, Kan.

Many scale houses are metal or brick buildings, often unattached to the elevator and some distance away. Most are  unremarkable. But some of the old concrete scale houses have unique charm. The scale houses that accompanied J. H. Tillotson elevators were particularly attractive, and are one of the first things to look for when identifying their elevators.

Scale house in Willows, Calif.

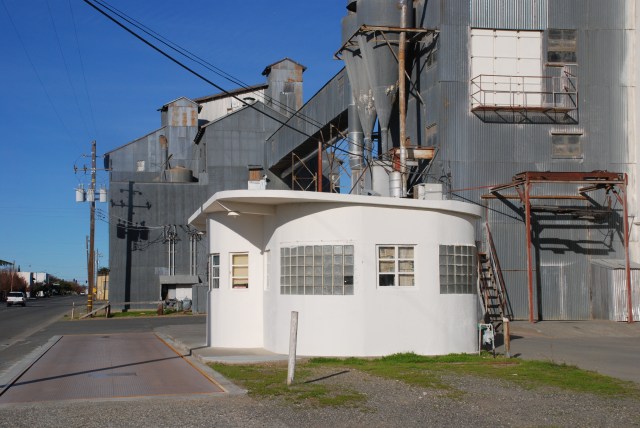

Scale house in Willows, Calif.

DSC_0538

Other builders also produced some remarkable scale houses. Elevator building was driven by engineering and economical constraints, but in some cases the scale houses received special attention. In Willows, Calif., I photographed an example that had to take first prize. This dandy building recalls a 1960s drive-in burger joint, complete with car-side speakers and root beer floats. While it is not an example of our grandfathers’ work, it deserves notice.

The simple lines of the back of the scale house at Kanorado, Kan.

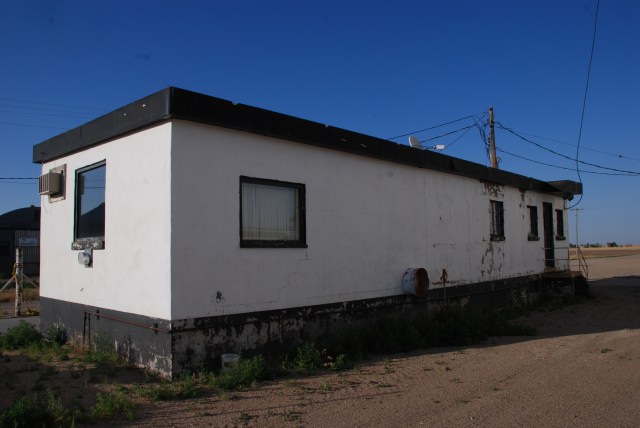

The simple lines of the back of the scale house at Kanorado, Kan.

Joseph H. Tillotson developed a characteristic style for the scale houses his company built. Those I have visited appeared to be concrete, and many had attractive details. For more typical examples of his work, stay tuned.

Related articles

A photo tour at Kanorado, Kansas, reveals subtle J. H. Tillotson design details

by kocart

DSC_0642Story and photos by Kristen Cart

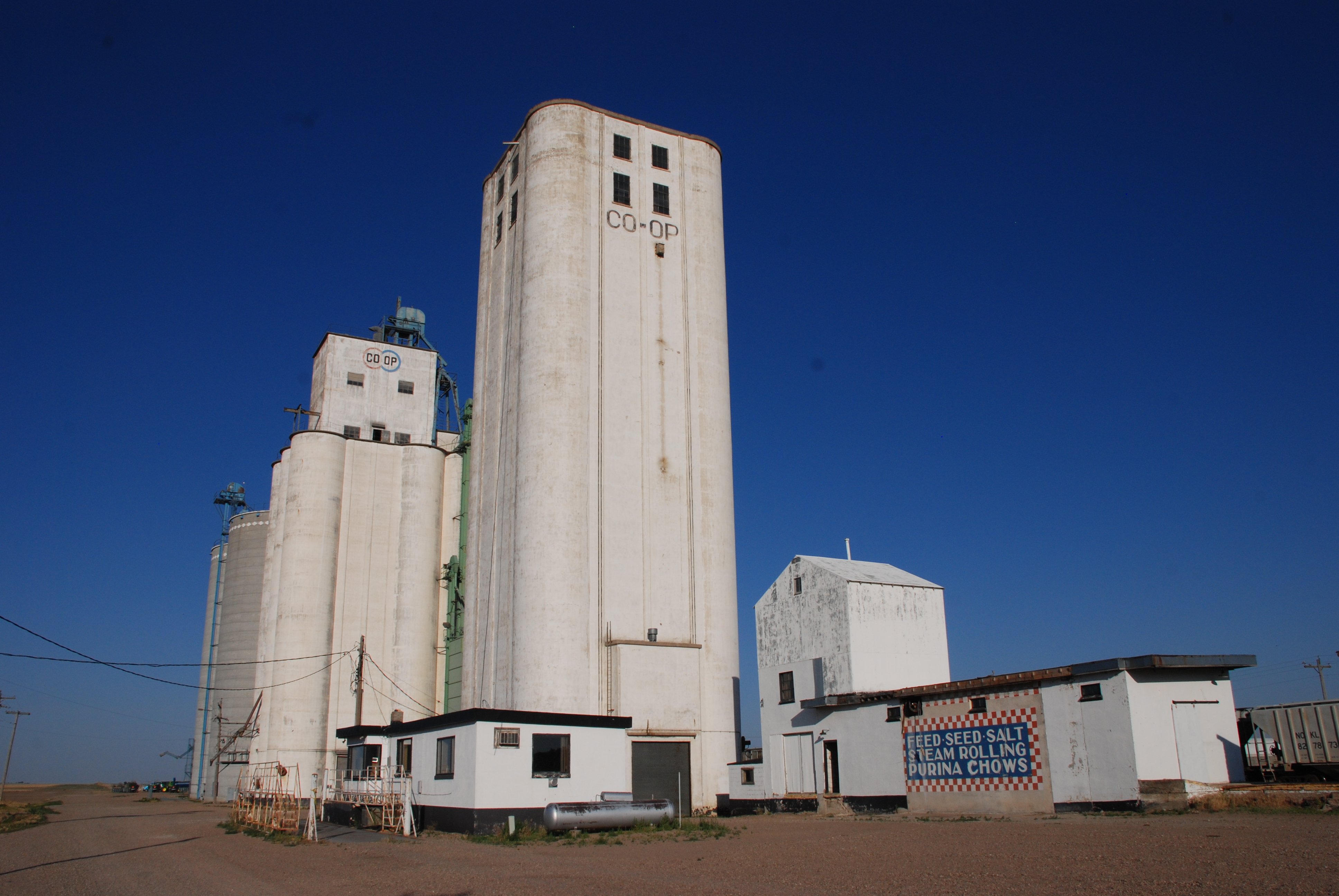

One of the best stops on my elevator tour last October was Kanorado, Kan. It was a fortuitous visit, made in the golden hour of photographic light. We have profiled the elevator before, based upon a visit by Gary Rich while the elevator was operating and open for an impromptu tour. But I wanted to see for myself the elevator my grandfather William Osborn built.

No one was there when we arrived, but I was able to get a good look at all sides of the structure. The straight up, classic lines were unique to  J. H. Tillotson elevators.

DSC_0664

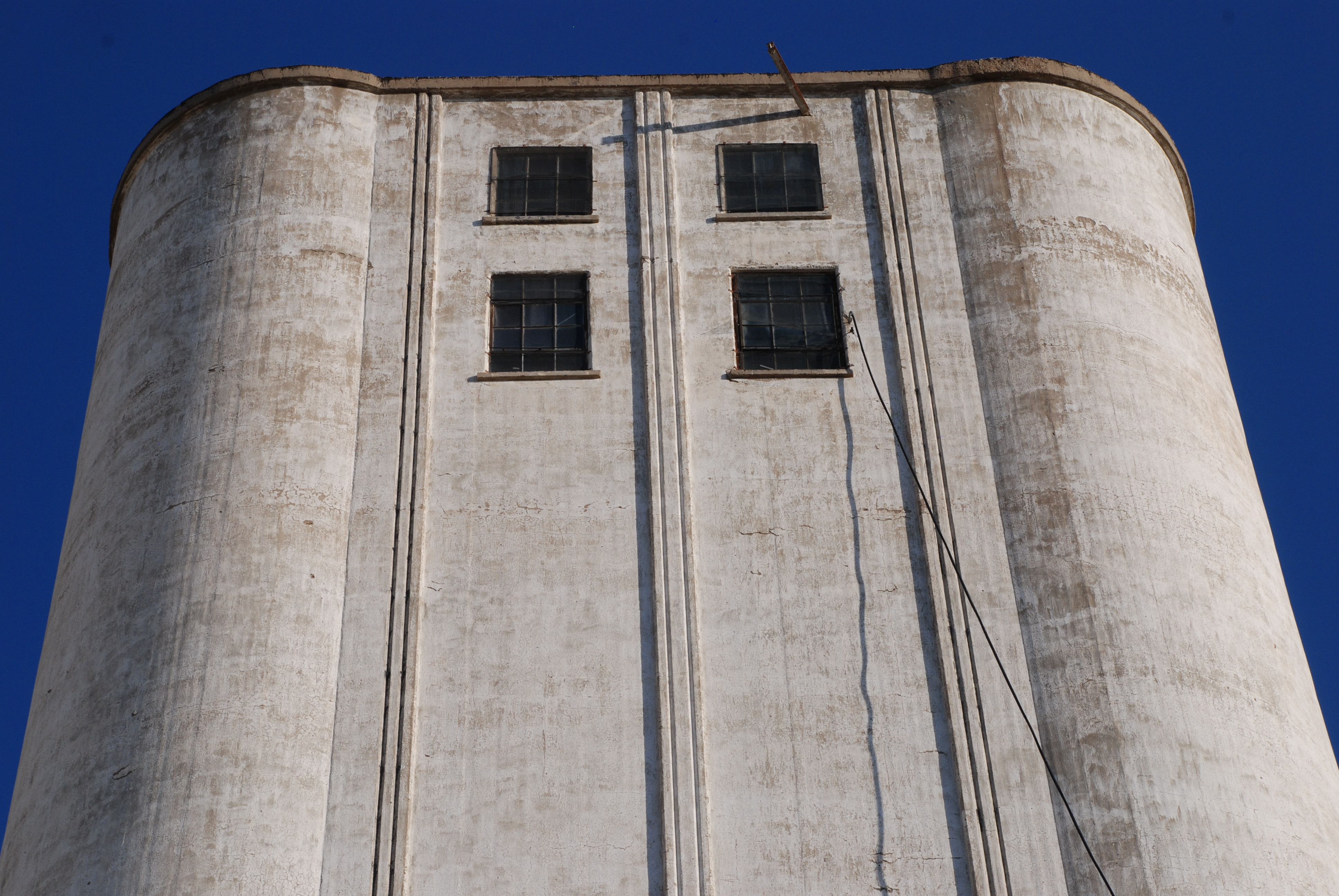

A view of the integral headhouse with windows to admit light

Other companies built similarly styled elevators, such as the Greenwood, Neb. elevator built by Tillotson of Omaha in 1951. But those differed in shape and concrete detailing. The elevator at Kanorado was an earlier effort, and should be compared with those at Traer, Kan., Goodland, Kan., and Wauneta, Neb., among others.

DSC_0655

Late afternoon shadows are cast across the drive-through scale



Another design element that seems to be unique to Joseph H. Tillotson’s Denver-based company is the squat concrete scale house, a deceptively simple building with lovely proportions, as can also be seen with the J. H. Tillotson elevator at Daykin, Neb.

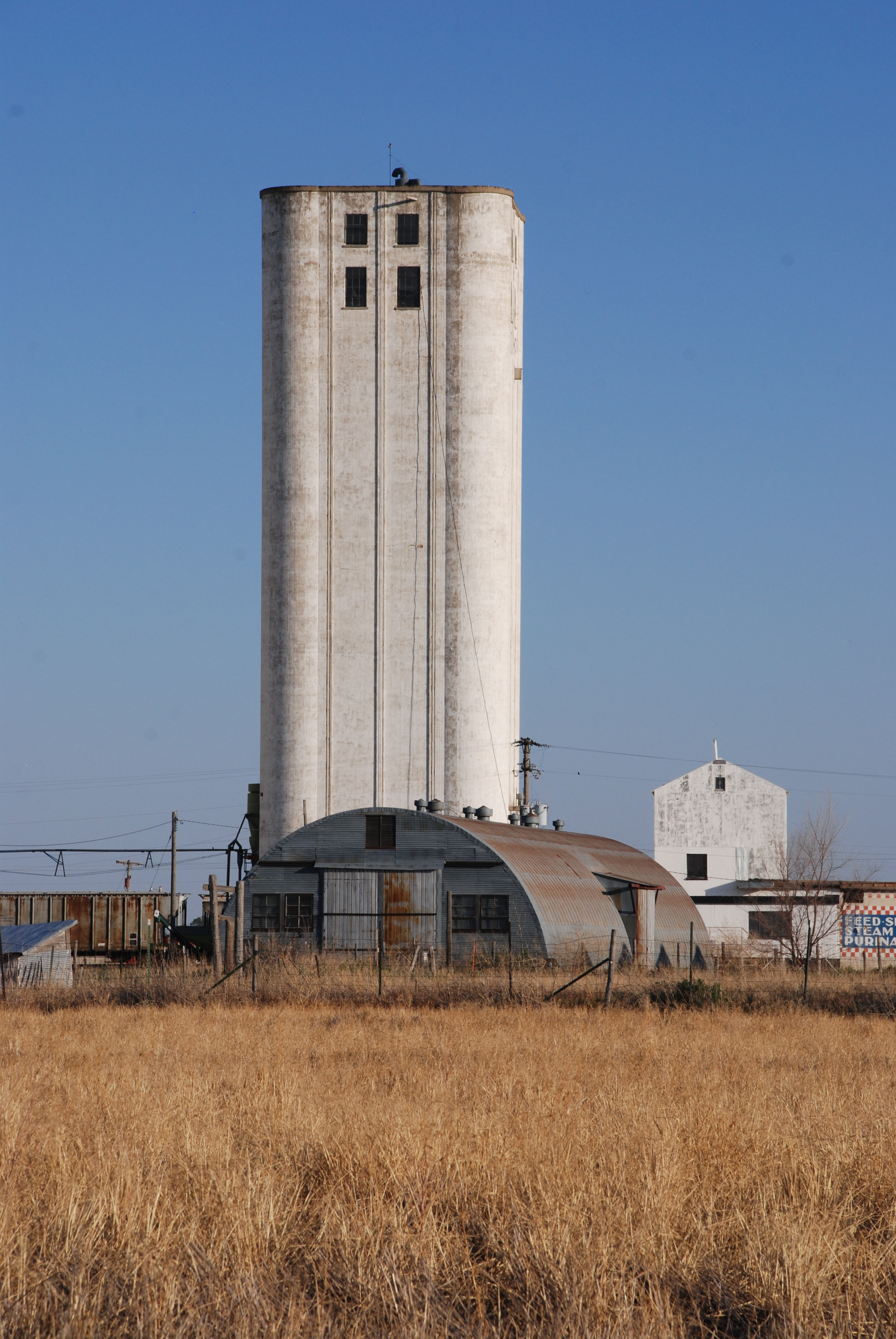

DSC_0687It is good to see another 1940s vintage elevator still doing its job nearly 70 years later. It is a testament to a work ethic that seems quaint in our present day, and a personal investment in quality beyond the next payday. My grandfather would be proud.

Related articles

Elevator builders turned to wartime projects during World War II

by kocart

Unknown, Gerald Osborn, William Osborn, Iver Salroth

Jerry Osborn (standing) with his father Bill Osborn (center) and Iver Salroth (right) in Galveston, Texas in 1945 during construction of Tillotson’s Fairmont building in Giddings.

By Kristen Cart

We have very limited information about the activities of Tillotson Construction of Omaha during World War Two. The other two elevator builders we profile, J. H. Tillotson, Contractor, and Mayer-Osborn, of Denver, Colo., began their operations after the war, but individuals working for both companies gained their experience during wartime, either at Tillotson Construction, or elsewhere.

Eugene Mayer, a partner in Mayer-Osborn Construction, previously worked in a partnership, Holmen and Mayer, based in Denver. Orrie Holmen was a University of Chicago-trained architect. Eugene’s sister Sheila was the wife of Joe Tlllotson. At some point after 1938, Joe left his brother Reginald in charge of the parent company, Tillotson Construction, of Omaha, and moved to Denver to start his own elevator business, accompanied by old Tillotson hands William Osborn and Bill Morris.

It would be fascinating to trace the wartime activities of each of these principal builders, if they can be learned.

Elevator photos026In the Tillotson company records, we found concrete elevator specifications beginning a few years before the War and resuming immediately afterward, but conspicuously absent were records of elevator construction during the War.

However, we know Tillotson Construction was active between 1942 and 1945. We found one snippet in an old newspaper, which we transcribed on the blog: https://ourgrandfathersgrainelevators.com/2012/05/08/nebraska-firms-get-government-contracts/.

When we learn more about the activities of the company during that time, we will certainly write about it here. It is an open line of inquiry, and we are eagerly seeking more information.

Related articles
