1947 clipping gives details of the impressive Potter, Neb., elevator by J. H. Tillotson, Contractor

by baggyparagraphs

The Nebraska State Journal (Lincoln, Nebraska), Sunday, Feb. 16, 1947

POTTER, Neb. (AP). One of Nebraska’s largest grain elevators–a quarter-million bushel structure of reinforced concrete–will be built here this spring.

The huge elevator is expected to be completed in time for the 1947 harvest season in the wheat-rich panhandle. The first dirt will be turned in March.

The Potter Co-Op Grain company, which will build the structure, said it will be on the Union Pacific right-of-way about two blocks west of the Potter depot. Contract has been let to the Tillotson Construction company of Denver. Estimated cost of the elevator is $100,000.

* * *

STEEL ALREADY is being delivered at the site. The elevator will be about 130 feet high and will be built in one compact unit containing 26 individual storage bins. A gravity feed storage system and other new operating features will be installed.

Normal capacity of the elevator will be 225,000 bushels but storage up to 256,000 bushels will be possible. The Co-Op also will retain control of the 16,000 bushel elevator it already is operating here.

* * *

FUNDS WERE borrowed from farmers in this area under a plan whereby the lender gets 1 1/2 bushels of reserved storage for each dollar invested up to a maximum of 7,500 bushels. The storage space will be reserved during the peak harvest season at a time when many farmers are forced to pile their wheat in the open.

Huge scales capable of handling a truck and semi-trailer loads up to 50 tons will be installed.

The Potter Co-Op serves one of the state’s largest wheat territories including farms in Cheyenne, Kimball and Banner counties. It has more than 400 patrons.

Aside from a larger structure at Chappell, which has a storage capacity of close to 300,000 bushels, the new Potter elevator will be the largest in western Nebraska.

Peering into ancient grain storage practices from Tell Edfu to Ribchester

by kocart

By Kristen Cart

As long as agriculture has existed, food storage has been essential to human survival. Grains could be stored without substantial spoilage more easily than other foods, so societies engineered grain storage very early, which enabled people to congregate in cities. In the book of Genesis in the Bible, the story of Joseph relates how he helped Egypt store grain against periods of famine. It was a successful strategy.

Genesis 41:48-49:

48 During those seven years, Joseph collected all the excess food in the land of Egypt and stored it in the cities. In every city he laid up the food from the fields around it. 49 So Joseph stored up grain in such abundance, like the sand of the sea, that he stopped keeping track of it; for it was beyond measure.

The practice of grain storage that was credited to Joseph in the Bible was indeed part of the long-standing economic system in Egypt.

Surviving ancient Egyptian city sites, while fairly rare, have drawn renewed interest as archaeologists explore how urban societies developed. A prominent feature of Tell Edfu, an Egyptian city studied by the University of Chicago, is a courtyard containing seven circular mud-brick silos, built together to store surplus grain. Each silo measures 5.5-6.5 meters across. The 3500 year-old site was built beside an administrative center, a feature that points to a period of prosperity measured in grain, which was the currency of the time.

Archaeologists find silos and administration center from early Egyptian city

Another example of early grain storage was discovered in Lancashire, England, in Ribchester. This location was an early Roman outpost where a garrison was stationed. Stored grain was needed to provide for the soldiers and their livestock. When the Roman soldiers abandoned the fort, evidence shows that the remaining stores were burned and the storage site destroyed.

Ribchester Roman Granaries

Every grain operation has to contend with temperature, humidity, and spoilage when storing grain. The Romans found ingenious solutions to the same problems we encounter. Their granaries had thick walls with column-supported floors, leaving void areas underneath, and drainage gutters to keep rain diverted away. These measures kept the grain cool and dry. Building the granaries above ground level also helped keep rats and mice out.

All that remains at the Ribchester site are the thick wall bases, outlining the footprint of two rectangular bins, and the support columns that held the old flagstone floors above the ground. Signs of burned grain and broken flagstones tell the story of the abandonment of the outpost.

I was curious whether ancient Greece used similar storage. Accounts I read pointed out that they used amphorae, or large pottery jars, to transport commodities including grain. They imported their grain supply across the Mediterranean Sea using these vessels, while prohibiting grain exports, to ensure their food security. Amphorae were convenient because they could be stored, but they were also portable. They were an ideal solution for foodstuffs moving through a major trading center. I wonder if consumption kept up with supply to the point that large-scale permanent storage was not needed. It is a good topic for further exploration.

Grain is such an ordinary part of life for us that it goes mostly ignored, though the history of grain is compelling. I am forever curious. Perhaps more of this remarkable history will be uncovered. I will share whatever I find.

1981 report: 1 dies, 2 critical as Bellwood explosion destroys headhouse

by baggyparagraphs

Lincoln Journal Star, April 8, 1981

BELLWOOD–One man died under tons of grain and concrete and two others were listed in critical condition Wednesday in an explosion that ripped through the Farmers Co-Op grain elevator late Tuesday afternoon, authorities said.

The body of Gary Roh, 20, of Linwood was pulled from the debris Tuesday by rescue teams working under floodlights and using heavy equipment, including a bulldozer.

Hospital and elevator officials said Joe Stastny, 58, a rural Bellwood farmer who was unloading grain when the blast was triggered, and elevator employee Larry Navrkal, 28, of Bellwood were in critical condition Wednesday morning at Lincoln’s St. Elizabeth Community Health Center’s burn center.

“It was a pretty big boom,” the elevator’s grain department manager Bob Bell said in a telephone interview Wednesday. “I was here in the office, which is about 50 yards from the elevator. It looked like night outside and we just dived on the floor until the debris stopped flying. Then we called the emergency number.”

Roh was reported missing after the blast, which destroyed parts of the elevator and hurled huge chunks of concrete into nearby streets and homes. Elevator officials had hoped Roh might be trapped alive, but optimism faded as the hours passed.

His body was found about 9:45 p.m.–more than five hours after the blast–in an alleyway pit inside the elevator where Stastny was unloading grain.

John Navrkal of Bellwood, an elevator supervisor and Larry Navrkal’s father, also was injured, but did not require hospitalization.

“We had a farmer (Stastny) in the elevator in a truck unloading grain,” said co-op office manager Maxine McDonald. “We had three employees there, too. The farmer was covered with grain, and they had to dig him out.”

Rescue workers used the Jaws of Life to remove him from his truck.

Witnesses said the blast apparently was triggered somewhere in the south end near Stastny’s unloading truck.

Mrs. McDonald said the 1.5 million-bushel structure was about half full of a mixture of grains and that there had been no fires. She said damage was extensive.

The blast’s cause had not been determined Wednesday morning, and damage estimates were unavailable.

Bell said insurance investigators, State Patrol officers and State Fire Marshall’s office investigators were at the scene Wednesday to try to determine the blast’s cause and whether the facility is structurally sound enough to remove remaining grain.

State Fire Marshall Wally Barnett said Wednesday the cause never may be determined “because it went from one end to the other, blew out the top and even blew out some of the bins.”

Joe Wilson, who owns a barbershop near the elevator, said there were holes measuring 25-by-50 feet in the elevator’s walls.

“The north headhouse is completely blown off,” he said. “A tank on the northeast side of the elevator was split from top to bottom.”

Wilson said the blast shook the area around the elevator, damaging homes on both sides and sending concrete fragments flying for two blocks.

“The house on the east side was riddled with concrete chunks the size of basketballs, and windows were broken,” he said. “Another house a half a block away has holes the side of footballs in the walls.”

The damage to the elevator was so extensive that at one point, the search for Roh was called off because rescue workers feared moving the grain would cause the damaged structure to collapse. Mrs. McDonald said digging resumed after a structural engineer brought in by the co-op’s insurance company examined the elevator.

There were no reports of other serious injuries.

Bellwood’s elevator is the third Nebraska elevator to explode in 1 1/2 months. In late February, an explosion rocked the Southeast Nebraska Farmers Co-op in Beatrice, injuring three men. Then slightly more than two weeks ago, a series of explosions and fires extensively damaged the McMaster Grain Co. in South Sioux City. No one was injured, but damage was estimated at $1 million.

Bellwood, a community of 361 residents, had another explosion Feb. 19 when an explosion and fire at the Farmer’s Co-op service station injured three employees and flattened the garage. None of the men were injured seriously, and the station was back in business soon after the explosion.

Mrs. McDonald said she had worked at the Bellwood elevator for 24 years, and there was another explosion there in 1959.

“But it wasn’t anywhere like this one,” she said. “We are just all in a state of shock. This is a terrible thing–one that you hope you never have to see again.”

Thank you to Susan Allen for providing this article.

1959 news photo shows rounded headhouse of Tillotson's Bellwood, Neb., elevator

by baggyparagraphs

Lincoln Journal Star, Saturday, March 28, 1959

BELLWOOD BLAST–A basement explosion in the Bellwood grain elevator knocked out windows and a door at the top of the tubes. One spokesman speculated it might have been a dust blast, sparked by a hot motor. Two men were injured.

Editors’ note: Thank you to Susan Allen for providing the clipping.

News item from 1951 reports that Tillotson's York, Neb., elevator proceeded well

by baggyparagraphs

A contributor in Lincoln, Neb., dug up this archival item from the Lincoln Journal Star of Friday, June 15, 1951:

York Grain Elevator Work Proceeds Well

YORK, Neb. (UP). York’s new grain elevator had reached a height of about 95 feet and is continuing to grow about 6 feet each 24 hours.

Heavy rains of the last few weeks have hindered work somewhat, but progress was considered “good.”

History of Tillotson’s massive Bellwood, Neb., elevator includes details of 1959 explosion that injured two

by baggyparagraphs



By Ronald Ahrens

At 320,000 bushels, Bellwood, Neb., and Canyon, Tex. were the second-biggest jobs for Tillotson Construction Co. when they were built in 1950, some 12 years after the company’s first elevator of reinforced concrete.

There was the early, huge 350,000-bushel facility at Farnsworth, Tex., in 1945.

Otherwise, the 310,000-bushel elevator at Dalhart, Tex., in 1949, was next-largest.

We now find this welcome history of the Bellwood elevator complex–which presents slightly different figures from those in the company record–from a local source:

The first concrete elevator was built in 1950 with a capacity of 324,000 bushels and a cost of $141,000. The first addition followed in 1954 costing $133,000 and holding 344,000 bushels. The second annex of 343,000 bushels followed in 1958 with a price tag of $116,000. The third annex, being the north elevator with the headhouse, was built the next year for $179,000 and has a capacity of 290,000 bushels. Twenty years later, in 1979, two large diameter tanks each holding 165,000 bushels, were built at a total cost of $333,000. This brings the companies (sic) licensed storage capacity to 1,685,000 bushels.

As reported in the previous post, we found the Frontier Cooperative location to be surviving quite nicely after 70 years and two explosions.

Here is this detail of the first one:

An explosion ripped through the first concrete elevator on March 27, 1959 causing considerable damage to the basement and headhouse areas. Seriously injured in this explosion were Jim Mick and Walker Meyers, both employees of the Farmers Co-op Grain Co.

The original house was built with 2,436 cubic yards of reinforced concrete and 20.3 yards of plain concrete for the hoppers.

Reinforcing steel amounted to 143.3 tons, which worked out to 115.3 pounds per cubic yard.



The structure sits on a main slab of 66 x 77.5 feet. We work that out to 5,115 square feet, but the construction details in the company records note, “Act. Outside on Ground” and give the figure of 4,806 square feet.

The reinforced concrete and steel weighed in at 5,069 tons, and the tanks could accommodate 9,600 tons of grain. Incorporating other factors like 28 tons of structural steel and machinery, as well as 40.3 tons of concrete for the hoppers, the gross weight loaded was an impressive 14,964 tons.

All this massiveness was quite a testament of progress. We have to remember that just 12 years before–with the period of inactivity during World War Two intervening–the Tillotsons were building cribbed wooden elevators.

The main slab covers a pit of 15 feet 9 inches deep.

Way above the pit, the cupola (headhouse) was quite a specimen at 23 feet wide, 63.75 feet long, and 39 feet high–identical to Canyon and pretty comparable to the 300,000-bushel elevators that were also built in 1950 at Burlington, Colo., and Hartley, Texas. All of these elevators were built on the same plan that was original to Bellwood, yet the tanks at Burlington and Hartley rose to 115 feet instead of 120 feet and the cupolas were five feet taller than those at Bellwood and Canyon.

The single-leg Bellwood house boasted 72-inch-diameter head and boot pulleys that were 166 feet apart; the 14-inch, six-ply Calumet belt stretched an impressive 360 feet. The record shows that the belt’s cups, of 12 x 6 inches, were spaced 8.5 inches “o.c.”

Powered by a 40-horsepower Howell drive, the head pulley could turn a 42 rpm. It provided a theoretical leg capacity of 7,920 bushels per hour. Actual leg capacity at 80 percent of theoretical used 32 horsepower for 6,350 bushels per hour.

The 1981 explosion destroyed the cupola and, we presume, all its contents. We hope to find period photos of before and after.

Records show the 1954 annex with capacity of 340,000 bushels. It consumed 2,129 cubic yards of reinforced concrete and 119.5 tons of steel.

The 24-inch-thick slab–same thickness as at the main house–spread over 45.5 x 107 feet for “Act. Outside on Gd.” of 4,569 square feet.

The 10 tanks of 20 feet in diameter reaching 130 feet high required 4,377.5 tons of reinforced concrete and yielded a gross loaded weight (with 10,200 tons of grain) of 15,628.5 tons.

The cupola, or run, atop this annex was 13 feet wide, 100 feet long, and 8.4 feet high.

Top and bottom belts were 30 inches wide and moved at 600 feet per minute. A 10-horsepower drive at top and 7-horse drive at bottom enabled movement of 9,000 bushels per hour.

As we saw for ourselves, the second annex, a 1958 job, bears manhole covers embossed with the Tillotson Construction Co. stamp. Alas, our records stop at 1955.

The headhouse is long gone, but the Frontier Cooperative elevator at Bellwood, Neb., may be Tillotson’s largest build

by baggyparagraphs

IMG_20200104_135327918

By Ronald Ahrens

We arrived on a quiet Saturday afternoon at the Frontier Cooperative elevator in Bellwood, Neb., knowing a 1981 explosion had taken off the headhouse. By the account of Uncle Tim Tillotson, we were also alerted to the possibility of another explosion there in the late-1950s.

Nebraska 2020Nevertheless, we expected to see an elevator with a replacement structure at its crown.

We found an impressive complex: mighty, smart-looking, and meticulously maintained. Yet it operates with external legs to serve the huge complex–no headhouse whatsoever. The leg over the main house is mantis-like and a little spooky.

Of course, there was no hint whether the original headhouse was a squared-off rectangle or a curved volume in keeping with the characteristic Tillotson style that was developing after World War Two.

Tillotson Construction Co. built the main house, a 320,000-bushel elevator, in 1950 and followed up with a 340,000-bushel annex in 1954. The main house followed an original plan with eight tanks (silos) of 20 feet in diameter and reaching 120 feet high.

There was the typical central driveway, 13 x 17 feet, for unloading trucks.

Other notes in the company record say “5 bin dist. under scale” and “Prov. for hopper scale.” There were 22 bins and a dust bin.

The 1954 annex, also on an original plan, featured 10 tanks of 20 feet in diameter and reaching 130 feet high. It had a basement, 30-inch belt conveyors, and a tripper.

We also found the Tillotson name embossed on the manhole covers of the second annex, which appears to match the first annex in size and capacity. But company records make no mention of this second annex.

Nevertheless, it appears possible to credit Tillotson with an even 1 million bushels of capacity.

A close look at surfaces on the main house shows patchwork that must represent filled holes from the big blowout.

While preparing this post, I phoned Frontier Cooperative branch manager Justin Riha, who knew of this 1981 explosion.

The elevator works fine with the external legs. “I think it’s better,” Riha said.

Overall capacity at the location is 2.4-million bushels, a tidy amount at such a small town.

An old-time mill in Billings, Mont. sports a wooden scale

by kocart

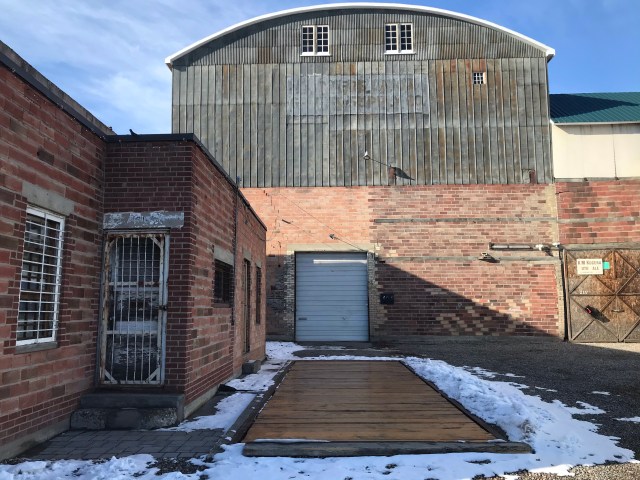

A wooden scale lies beside the old brick scale house.

Story and photos by Kristen Cart

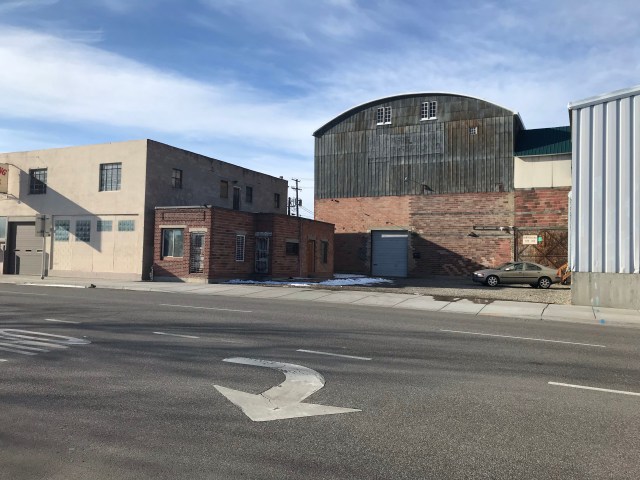

This old mill in Billings, Montana was too good to pass up. A trip around all sides revealed its current occupation as a tire company or body shop–old cars and an old wood elevator inhabit the yard beside it, but a large quantity of tires are piled adjacent to the road on the other side. But the area pictured above shows that it once handled grain.

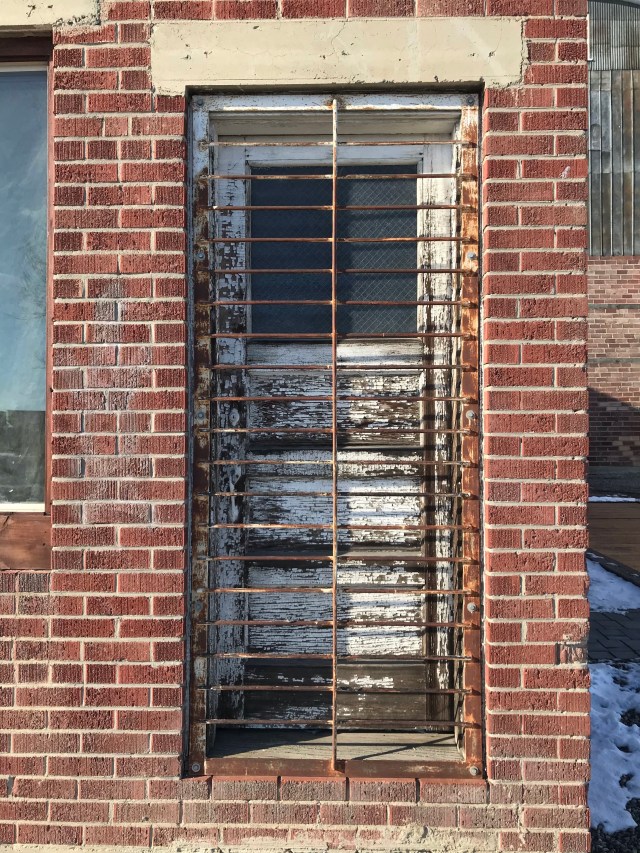

The door to the scale house admits no one.

I have never seen a wooden scale before. The scale house next to it is shut up tight with iron bars–it could have been a jail, perhaps, in a later life. The mill itself shows signs of repeated brick repair. The story of these buildings invites a more thorough investigation.

The mill is in a historic part of Billings and sits across the street from the railroad lined with coal cars. If you could imagine it opening up to a brick-paved street illuminated with gas lights, this structure would fit right in. But it is a bit odd in its present setting.

The modern look undoubtedly bears no resemblance to the original view.

The mill appears to be well maintained and will, with care and good luck, grace this historic street for another hundred years.

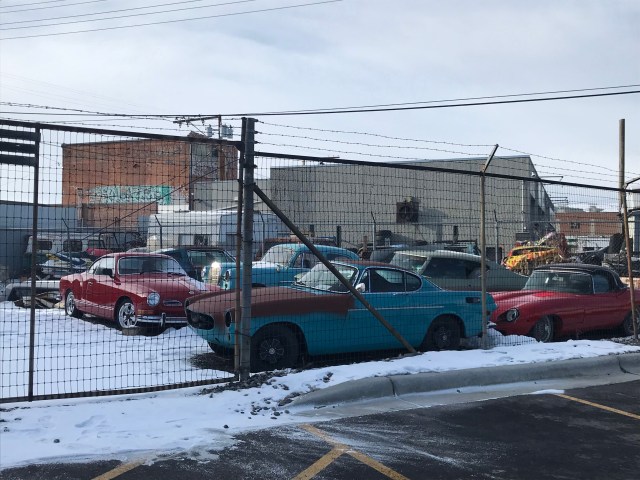

Cars in the adjacent yard await restoration.



An unused elevator completes the scene.
