1981 report: 1 dies, 2 critical as Bellwood explosion destroys headhouse

Lincoln Journal Star, April 8, 1981

BELLWOOD–One man died under tons of grain and concrete and two others were listed in critical condition Wednesday in an explosion that ripped through the Farmers Co-Op grain elevator late Tuesday afternoon, authorities said.

The body of Gary Roh, 20, of Linwood was pulled from the debris Tuesday by rescue teams working under floodlights and using heavy equipment, including a bulldozer.

Hospital and elevator officials said Joe Stastny, 58, a rural Bellwood farmer who was unloading grain when the blast was triggered, and elevator employee Larry Navrkal, 28, of Bellwood were in critical condition Wednesday morning at Lincoln’s St. Elizabeth Community Health Center’s burn center.

“It was a pretty big boom,” the elevator’s grain department manager Bob Bell said in a telephone interview Wednesday. “I was here in the office, which is about 50 yards from the elevator. It looked like night outside and we just dived on the floor until the debris stopped flying. Then we called the emergency number.”

Roh was reported missing after the blast, which destroyed parts of the elevator and hurled huge chunks of concrete into nearby streets and homes. Elevator officials had hoped Roh might be trapped alive, but optimism faded as the hours passed.

His body was found about 9:45 p.m.–more than five hours after the blast–in an alleyway pit inside the elevator where Stastny was unloading grain.

John Navrkal of Bellwood, an elevator supervisor and Larry Navrkal’s father, also was injured, but did not require hospitalization.

“We had a farmer (Stastny) in the elevator in a truck unloading grain,” said co-op office manager Maxine McDonald. “We had three employees there, too. The farmer was covered with grain, and they had to dig him out.”

Rescue workers used the Jaws of Life to remove him from his truck.

Witnesses said the blast apparently was triggered somewhere in the south end near Stastny’s unloading truck.

Mrs. McDonald said the 1.5 million-bushel structure was about half full of a mixture of grains and that there had been no fires. She said damage was extensive.

The blast’s cause had not been determined Wednesday morning, and damage estimates were unavailable.

Bell said insurance investigators, State Patrol officers and State Fire Marshall’s office investigators were at the scene Wednesday to try to determine the blast’s cause and whether the facility is structurally sound enough to remove remaining grain.

State Fire Marshall Wally Barnett said Wednesday the cause never may be determined “because it went from one end to the other, blew out the top and even blew out some of the bins.”

Joe Wilson, who owns a barbershop near the elevator, said there were holes measuring 25-by-50 feet in the elevator’s walls.

“The north headhouse is completely blown off,” he said. “A tank on the northeast side of the elevator was split from top to bottom.”

Wilson said the blast shook the area around the elevator, damaging homes on both sides and sending concrete fragments flying for two blocks.

“The house on the east side was riddled with concrete chunks the size of basketballs, and windows were broken,” he said. “Another house a half a block away has holes the side of footballs in the walls.”

The damage to the elevator was so extensive that at one point, the search for Roh was called off because rescue workers feared moving the grain would cause the damaged structure to collapse. Mrs. McDonald said digging resumed after a structural engineer brought in by the co-op’s insurance company examined the elevator.

There were no reports of other serious injuries.

Bellwood’s elevator is the third Nebraska elevator to explode in 1 1/2 months. In late February, an explosion rocked the Southeast Nebraska Farmers Co-op in Beatrice, injuring three men. Then slightly more than two weeks ago, a series of explosions and fires extensively damaged the McMaster Grain Co. in South Sioux City. No one was injured, but damage was estimated at $1 million.

Bellwood, a community of 361 residents, had another explosion Feb. 19 when an explosion and fire at the Farmer’s Co-op service station injured three employees and flattened the garage. None of the men were injured seriously, and the station was back in business soon after the explosion.

Mrs. McDonald said she had worked at the Bellwood elevator for 24 years, and there was another explosion there in 1959.

“But it wasn’t anywhere like this one,” she said. “We are just all in a state of shock. This is a terrible thing–one that you hope you never have to see again.”

Thank you to Susan Allen for providing this article.

News item from 1951 reports that Tillotson's York, Neb., elevator proceeded well

A contributor in Lincoln, Neb., dug up this archival item from the Lincoln Journal Star of Friday, June 15, 1951:

York Grain Elevator Work Proceeds Well

YORK, Neb. (UP). York’s new grain elevator had reached a height of about 95 feet and is continuing to grow about 6 feet each 24 hours.

Heavy rains of the last few weeks have hindered work somewhat, but progress was considered “good.”

History of Tillotson’s massive Bellwood, Neb., elevator includes details of 1959 explosion that injured two



By Ronald Ahrens

At 320,000 bushels, Bellwood, Neb., and Canyon, Tex. were the second-biggest jobs for Tillotson Construction Co. when they were built in 1950, some 12 years after the company’s first elevator of reinforced concrete.

There was the early, huge 350,000-bushel facility at Farnsworth, Tex., in 1945.

Otherwise, the 310,000-bushel elevator at Dalhart, Tex., in 1949, was next-largest.

We now find this welcome history of the Bellwood elevator complex–which presents slightly different figures from those in the company record–from a local source:

The first concrete elevator was built in 1950 with a capacity of 324,000 bushels and a cost of $141,000. The first addition followed in 1954 costing $133,000 and holding 344,000 bushels. The second annex of 343,000 bushels followed in 1958 with a price tag of $116,000. The third annex, being the north elevator with the headhouse, was built the next year for $179,000 and has a capacity of 290,000 bushels. Twenty years later, in 1979, two large diameter tanks each holding 165,000 bushels, were built at a total cost of $333,000. This brings the companies (sic) licensed storage capacity to 1,685,000 bushels.

As reported in the previous post, we found the Frontier Cooperative location to be surviving quite nicely after 70 years and two explosions.

Here is this detail of the first one:

An explosion ripped through the first concrete elevator on March 27, 1959 causing considerable damage to the basement and headhouse areas. Seriously injured in this explosion were Jim Mick and Walker Meyers, both employees of the Farmers Co-op Grain Co.

The original house was built with 2,436 cubic yards of reinforced concrete and 20.3 yards of plain concrete for the hoppers.

Reinforcing steel amounted to 143.3 tons, which worked out to 115.3 pounds per cubic yard.



The structure sits on a main slab of 66 x 77.5 feet. We work that out to 5,115 square feet, but the construction details in the company records note, “Act. Outside on Ground” and give the figure of 4,806 square feet.

The reinforced concrete and steel weighed in at 5,069 tons, and the tanks could accommodate 9,600 tons of grain. Incorporating other factors like 28 tons of structural steel and machinery, as well as 40.3 tons of concrete for the hoppers, the gross weight loaded was an impressive 14,964 tons.

All this massiveness was quite a testament of progress. We have to remember that just 12 years before–with the period of inactivity during World War Two intervening–the Tillotsons were building cribbed wooden elevators.

The main slab covers a pit of 15 feet 9 inches deep.

Way above the pit, the cupola (headhouse) was quite a specimen at 23 feet wide, 63.75 feet long, and 39 feet high–identical to Canyon and pretty comparable to the 300,000-bushel elevators that were also built in 1950 at Burlington, Colo., and Hartley, Texas. All of these elevators were built on the same plan that was original to Bellwood, yet the tanks at Burlington and Hartley rose to 115 feet instead of 120 feet and the cupolas were five feet taller than those at Bellwood and Canyon.

The single-leg Bellwood house boasted 72-inch-diameter head and boot pulleys that were 166 feet apart; the 14-inch, six-ply Calumet belt stretched an impressive 360 feet. The record shows that the belt’s cups, of 12 x 6 inches, were spaced 8.5 inches “o.c.”

Powered by a 40-horsepower Howell drive, the head pulley could turn a 42 rpm. It provided a theoretical leg capacity of 7,920 bushels per hour. Actual leg capacity at 80 percent of theoretical used 32 horsepower for 6,350 bushels per hour.

The 1981 explosion destroyed the cupola and, we presume, all its contents. We hope to find period photos of before and after.

Records show the 1954 annex with capacity of 340,000 bushels. It consumed 2,129 cubic yards of reinforced concrete and 119.5 tons of steel.

The 24-inch-thick slab–same thickness as at the main house–spread over 45.5 x 107 feet for “Act. Outside on Gd.” of 4,569 square feet.

The 10 tanks of 20 feet in diameter reaching 130 feet high required 4,377.5 tons of reinforced concrete and yielded a gross loaded weight (with 10,200 tons of grain) of 15,628.5 tons.

The cupola, or run, atop this annex was 13 feet wide, 100 feet long, and 8.4 feet high.

Top and bottom belts were 30 inches wide and moved at 600 feet per minute. A 10-horsepower drive at top and 7-horse drive at bottom enabled movement of 9,000 bushels per hour.

As we saw for ourselves, the second annex, a 1958 job, bears manhole covers embossed with the Tillotson Construction Co. stamp. Alas, our records stop at 1955.

A 1981 explosion at Bellwood, Neb., blew the headhouse of a Tillotson elevator to pieces

profileIn a previous post, Uncle Tim Tillotson recalled an elevator repair job at Bellwood, Neb., after an explosion in 1959, where Tillotson Construction Co. built a 320,000-bushel elevator on an original plan in 1950.

Nebraska 2020Company records also note construction of a 340,000-bushel annex in 1954. And we discovered the Tillotson name on the manhole covers of a second, equal-sized annex our visit on January 4, 2020.

Meanwhile, as the following story details, we have found evidence of a subsequent mishap at Bellwood.

United Press International, Wednesday, April 8, 1981

BELLWOOD, Neb.–One man was killed and two others were critically injured in an explosion at a grain elevator that hurled debris over a wide area.

Rescue workers retrieved the body of Gary Roh, 20, from a 10-foot pit about five hours after the explosion at the Bellwood Farmer Co-op Tuesday afternoon.

Hospital authorities said Larry Navrkal, 28, an elevator employee, and Joe Stastny, 58, an area farmer, were in critical condition at St. Elizabeth’s Community Health Center.

Witnesses to the blast said it apparently was triggered somewhere in the south end near the unloading truck. The explosion shook the entire elevator, ripped out one wall and threw the headhouse, a structure on top of the elevator, completely off.

Roh, an elevator employee, was helping unload a farmer’s truck near the site where the explosion was apparently triggered.

The David City Banner-Press reported Stastny was inside the cab of a truck being unloaded inside the south end of the elevator when the explosion occurred. Rescue workers used the “jaws of life” to remove him from the truck which remained buried inside the elevator.

Roh’s body was discovered near Stastny’s truck just as authorities were ready to halt the search. The elevator remained standing but was riddled with holes. Authorities considered calling in a building inspector to determine the stability of the structure.

Bellwood and David City fire officials said there was not much of a fire after the explosion, which also damaged nearby houses and businesses. Rubble was spread for blocks and vehicles in the area were damaged by flying objects.

Workers from the state Fire Marshal’s office and the Nebraska State Patrol supervised the area Tuesday night. They said they didn’t know the cause of the blast, and there was no damage estimate available.

Formation of Tillotson Construction Co. pinned down thanks to news clipping

By Ronald Ahrens

We knew Tillotson Construction Co. was formed in 1938 after the death of my great-grandfather, Charles F. Tillotson. Family records show that he died in June of 1938 in New CorpsConcordia, Kan.

Sons Joseph H. Tillotson and Reginald O. Tillotson decided the future lay in reinforced-concrete elevators.

While they may have continued construction and repair of wooden elevators, the company’s construction record shows the first concrete elevator went up at Goltry, Okla., in 1939.

A notice of “New Corporations” in the Sep. 9, 1938 edition of the Lincoln Journal Star announces:

“Tillotson Construction company (sic), Omaha. The construction, erection, repair, reconstruction and rebuilding of grain elevators, storage warehouses and buildings of similar nature and description, $5,000. Joseph H. Tillotson, Reginald O. Tillotson, Rose A. Tillotson.”

Born in the late 1880s as Rose Brennan, Rose A. Tillotson, was the surviving widow of Charles and mother of Reginald and Joe. She died in the 1950s.

These details help us to construct a timetable while also showing the Tillotson brothers took bold steps to embrace new techniques and processes, moving the family enterprise forward.

Thank you to blog follower Suzassippi for passing along this clipping.

Tillotson Construction Co. summons workers to Fremont, Neb. job in 1942

“Workers Needed,” proclaimed the ad in the Oct. 29, 1942 edition of the Fremont (Neb.) Tribune. “Wage, 60¢ Per. Hour. Duration two to three months.”

Workers Needed

Tillotson Construction Co. was summoning prospects to report at the Updike Grain Corp. Elevator, 1st and Broad Streets, in Fremont.

Company records show no construction of reinforced-concrete elevators during 1942 and 1943, so it seems reasonable to surmise that in this period of wartime scarcity the Tillotsons were returning to their tradition of building and repairing wooden elevators.

An illuminating post on the blog Lost America Found describes Updike Grain Corp. in the following terms:

“The Updike Grain Co. was a large grain storage and trading company, headquartered in Omaha, Nebraska, and which operated grain elevators throughout the mid-west. Nelson Blackwell Updike (b. Dec. 2, 1871 Pennington N.J.) first bought a grain elevator in Eldorado Neb. shortly after his marriage in 1895. With the success of that elevator, he began to purchase more country elevators, and built terminal elevators in Omaha.”

Additionally:

“It’s hard to determine when the Updike name disappeared. After 1932, it was no longer needed by FNGC [Farmers National Grain Corp.] to trade on the exchange, but how long it continued to be used at the local level with the various grain elevators is not clear.”

We see from this ad that the Updike name continued in use at least until 1942.

Thank you to Suzassippi, a follower of Our Grandfathers’ Grain Elevators, for supplying this clipping and others to follow.

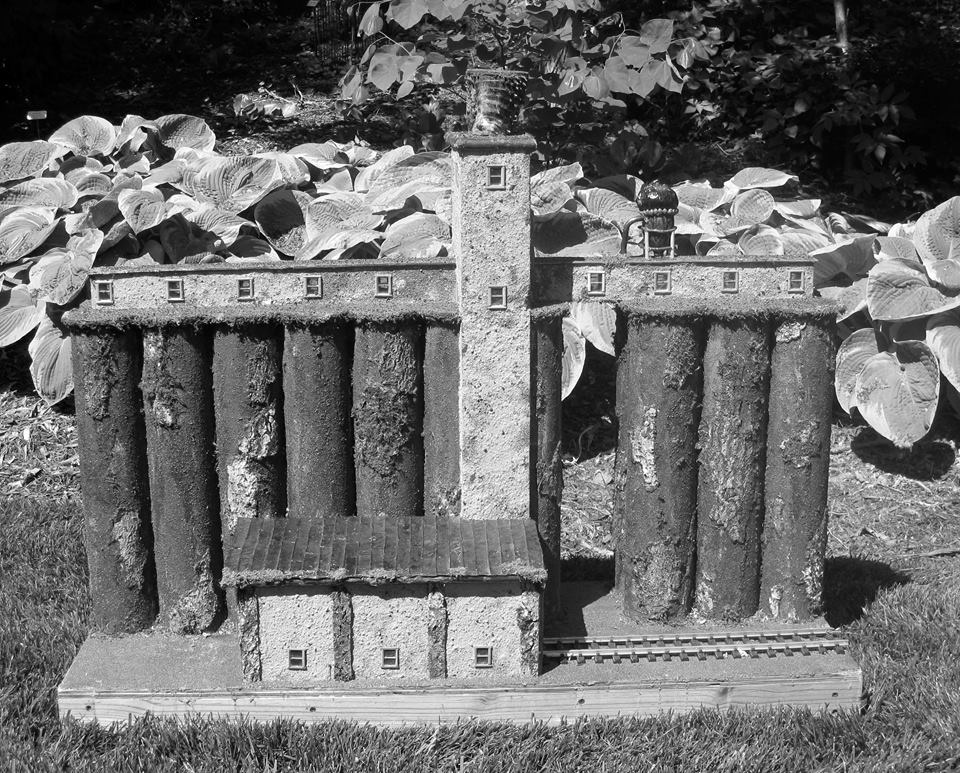

A model Tillotson grain elevator is part of Lauritzen’s Model Railroad Garden

12596192_672606939548995_1690921303_n

Photo courtesy of Lauritzen Gardens

We were happily surprised to hear from Rosemary Lebeda, director of development at Omaha’s Lauritzen Gardens, which is located along the Missouri River at 100 Bancroft St. She found her way to Our Grandfathers’ Grain Elevators when searching for information about Tillotson Construction Company’s Vinton Street elevator. She wrote:

“I thought you might like to know that a model of the grain elevators is a part of our Model Railroad Garden. This particular garden includes miniature sculptures of historical buildings in Omaha built from natural materials. They are on display throughout the summer and then they are brought inside and displayed as part of our Poinsettia show.

“Families really enjoy seeing the buildings, and the grain elevators are easy to spot. I drive by them almost every day! It was neat to discover your historical page on the web and learn more about the company that built them.

“The Garden is fairly new in comparison to other community attractions such as the zoo or museums. The visitors center opened in 2001 and before that it was pretty much open space.

“Lauritzen Gardens is uniquely positioned as the region’s premier botanical center and garden resource. Situated on 100 acres of lush grounds, the garden exemplifies visionary efforts to provide a quiet, tranquil and serene setting for the study, preservation, and pure enjoyment of some of the region’s most precious resources and flora. Beginning with a grassroots effort to build a garden for the Omaha community, the garden has quickly become a regional destination and has substantiated its position as a major Omaha-area attraction.

“Today, more than twenty themed gardens invite guests to immerse themselves in the beauty of the Nebraska landscape. At Lauritzen Gardens, a diverse palette of plant life combines with fine art, architectural components and water features to create an incredible sensory experience. The grounds change with the seasons and are open year-round for exploration and enjoyment.

“In addition to horticultural displays that inspire, events that entertain and educational programs that cultivate minds of all ages, the garden works to conserve the endangered plants of the Great Plains and to advance the understanding and stewardship of the region’s biological diversity.”







A long-time elevator man sends greetings from Hardy, Iowa, and shares some lore

GilmoreCity01

Story and photos by Larry Larsen

In response to a recent post about Odebolt, Iowa, we heard from Larry Larsen, who works for Gold Eagle Cooperative’s facility in Hardy, Iowa. Larry says Tillotson Construction Company’s elevator, built there in 1956, is “still operating and used daily!”

GilmoreCity08Larry graduated from high school in Gilmore City, Iowa. His father managed an elevator from 1958 to 2008, and Larry remembers high school summers spent cleaning out and painting silos.

After getting in touch with us, Larry took an excursion and delivered some photos of the Gilmore City elevator. It was built in 1949, a year when Tillotson also built elevators in Dalhart, Tex., Hooker, Okla., Hordville, Neb., West Bend, Iowa, and Montevideo, Minn., among other places.

Larry, who served 25 years in the United States Army, shared these additional reminiscences:

“I know a lot of the facilities in my old stomping grounds are [built by] Todd & Sargent. The facilities built in the 1980s and 1990s were done by Lambert & Hamlin.

“Interesting thing–I found out through my dad in early 2000s that Lambert & Hamlin built or started to build two concrete tanks in the town of Rutland, Iowa, and about halfway into that project they went bankrupt, causing Pro Cooperative to find a contractor mid-pour to finish the project.

GilmoreCity06“Pro Cooperative then became receiver of Lambert & Hamlin’s property in Sioux City.

“A lot of interesting history in many of the small towns all around the Midwest with the construction of elevators. Some communities had their population double when crews came to town.

“Reading the blogs, there was also a lot of tragedy involved, with people falling off the partially completed structures. I remember, in the early ’80s, Lambert & Hamlin was doing a slip in the tiny town of Pioneer, Iowa.

“They had a laborer who was smoking pot as he was tying rebar on the night shift. Said individual stopped tying rebar to light a joint, lost his balance, and fell 80 or so feet to his death.

“Slipping never paused for that.”

GilmoreCity04

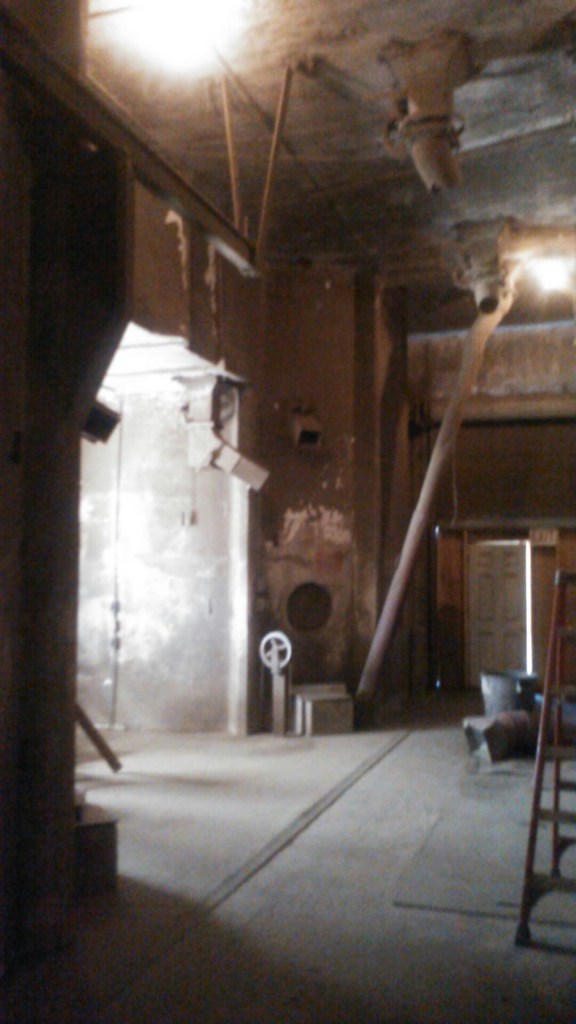

Looking inside and outside of Tillotson’s elevator in Cavalier, N.D.

IMG_6980

Story by Ronald Ahrens with photos by Scott Hansen

While looking at the specifications for Tillotson Construction Company’s concrete elevator built at Cavalier, N.D., in 1948, we gave a call to CHS, Inc. and reached Scott Hansen, who oversees operations at the 460,000-bushel facility there.

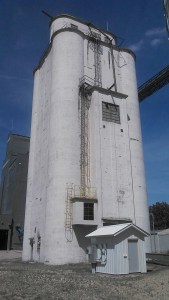

South view.

South view. Click on the image to enlarge it.

Hansen said the Tillotson elevator is mainly used for extra capacity during harvest. The operation mainly handles wheat, he said in a subsequent text message, “but also a lot of soybeans and corn.”

He offered to take some pictures, and we present them here, along with repeating the specs from our post of July 27.

This elevator was built according to the plan used for an elevator at Sheldon, Iowa, in 1941. It featured a center driveway and four tanks, each being 14.5 feet in diameter and rising 102 feet. Total capacity was 93,700 bushels.

The job required 1,027 tons of reinforced concrete and 55.13 tons of steel.

At 18 inches thick and covering 1,768 square feet, the main slab supported a gross weight as as high as 5,321 tons. Eight bins were overhead in the 12-by-17-foot driveway.

Crowning the main house was a cupola, or headhouse, of 15.5 x 32 x 22.5 feet, and the pulley center in this single-leg elevator was 127.0 feet above the floor.

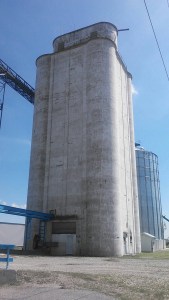

North view.

North view. The blue conveyor fills the structure; the gray one on the ground empties it.

Boot and head pulleys were 60 x 14 inches, but the head pulley’s axle diameter of 3-7/16 inches was 1.25 inches greater than the boot’s.

The 14-inch, 6-ply Calumet belt had cups of 12 x 6-inches spaced 10 inches apart. A 20-hp Howell motor supplied the drive in the headhouse. Actual leg capacity was 4500 bushels per hour.

A 2-hp motor operated the man lift. (Lifts in some Tillotson elevators of this era were still hand-operated.)

Cavalier was a fully accessorized elevator, with a 10-bushel load-out scale, an 8-inch load-out spout of 10-gauge steel, and 14-gauge cupola spouting. There was a 7.5-hp truck lift and a dust collection system consisting of a fan, column, and bin.

In the space for remarks at the page’s bottom, we find written, “One end round on cupola.” Yet the photo shows both ends are rounded.

IMG_6981

Neglecting to lag an elevator’s head pulley led to disaster in Bellwood, Neb.

Commentary by Tim Tillotson

Note: What follows is from a phone interview on May 14. He tells of a grain elevator repair job undertaken for Ted Morris, who by 1959 was a former employee of Tillotson Construction Company.

From left, Tim and Chuck Tillotson and La Rose Tillotson Hunt in 2012.

From left, Tim and Chuck Tillotson and La Rose Tillotson Hunt in 2012.

Ted Morris was the pilot. He worked in the office with Wayne doing the drawing and getting the specs together. He flew Dad when Dad would go out to the jobs. Ted used to take me flying out to the job. He was a fun guy, good natured. He tried going into business himself. Matter of fact, when Mart and I got married, we went out to York, Nebraska, to do a repair job that he had a contract on, in the dead of the winter. That was in ’59. It was Bellwood–the one that had the explosion. It blew the damn headhouse apart. Mart and I were married in November ’59 and we went out.

They were dumping grain in the drive pits to feed it up to the tanks. It was cold and also windy, I believe. When they rolled the damn overhead doors down to shut off the wind tunnel through the drive, the dust built up and that was also a job … I don’t know who decided not to lag the head pulley; it’s like putting a tire on a steel wheel. I don’t know what the hell was supposed to be such a big savings. I don’t know we were the only ones that did it, the other grain elevator contractors did, too, they quit lagging the head pulley. That big pulley would slip for a little bit till it got some speed up. Eventually, they found out the hard way, it was taking the facing off the back of the belt and exposing the fiber web in it. The damn web spots would get hot and start on fire.

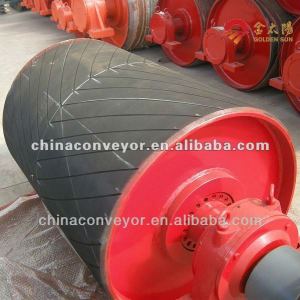

Conveyor_head_pulley_lagging_for_V_shaped[1]They called it lagging because they’d fasten or wrap a lag of grain elevator belt around real tight like a rubber tire to give it grip.

When I say we would lag the pulley, we didn’t do it. Where we purchased the pulley, they did it before they shipped. There was supposed to be some kind of cost savings. When you’re trying to pull 110, 120 foot of belt, with grain, it takes quite a bit to get thing rolling.

I guess because of the wind, they closed the overhead doors. The dust built up from the trucks just dumpin’ that grain, you can imagine, and it built up, The fire actually started in the boot pit. They were running that grain up, and I think they stopped the belt for a little bit because somebody went down into the pit to grease the bearing, and there was a fire and it exploded. It slammed him into the little steel ladder. The fire went right up the leg well, which was full of dust, and it just blew out in the headhouse.

The distributor floor was quite a height off the roof deck in the headhouse, and of course it was up overhead. You had to have some heights for the spider legs that went out to the tubes. That’s where it did its big explosion. It had enough force to actually bulge the headhouse walls. The distributor floor was concrete but held in place by a key way in the headhouse wall. They call it a key way when you slip the headhouse walls at a certain level. You put tapered two-by-four blocks in the forms that you could peel out later like teeth, so when you poured the floor it went into the keyways and that’s what held the distributor floor walls up. The explosion bulged the headhouse walls out so that they turned loose that distributor floor, which left it standing on the feed pipes that went into the tanks.

I’m trying to remember if Bellwood was the one with the galley out to the annex blowing the windows out of it, and it knocked the tripper–a little feeder that went out across the annex building and would fill whatever tanks you wanted–off its tracks.

The Bellwood Gazette reported the Holland Brothers' elevator fire in 1902.

The Bellwood Gazette reported the Holland Brothers elevator fire in 1902. It was the third elevator that had burned “inside of a year,” and as the town was gaining such notoriety, the Gazette was considering becoming a daily paper.

They were doing the repair on it. I think we pulled off because the temperature was so damn low you couldn’t put your bare hand on a piece of metal; it would stick. I remember we come back into Omaha and wasn’t out there that long. Mart and I came back to Omaha, stayed at my Uncle Ralph (Hassman’s) house, Johnny’s dad, before we got that apartment on the second floor of an old house that was turned into an apartment on Izard Street. That’s when I went to work for Leo A. Daly, the architects, in Omaha, for $300 a month. I went to work for them on the drawing table.

We were actually in York. It might have been a different repair job. Now that I think about it, I’m not even sure it was one of Dad’s elevators. We were married on Armistice Day of ’59. We had to be out there in December. I was working for Daly maybe a week when Dad passed on January 5, 1960.

The York job was a repair, and it was a repair from an explosion but nothing compared to Bellwood. I remember we were up in the headhouse when were there. The one asshole I didn’t know, and either did the other guy. He loaded, like, a shoebox on the floor with acetylene ’cause it’s a heavy gas, and it laid down in that box, and he turned around and threw a match over there and that that box blew up. I damn near ran off the frigging roof to get out of that headhouse. He thought that was so damn funny. I was about ready to bust him. I don’t like his sense of humor.

Ted wasn’t doing well at the business. I remember a time or two he called Mother. He was distraught, he wasn’t making it. I don’t remember what happened to Ted.
