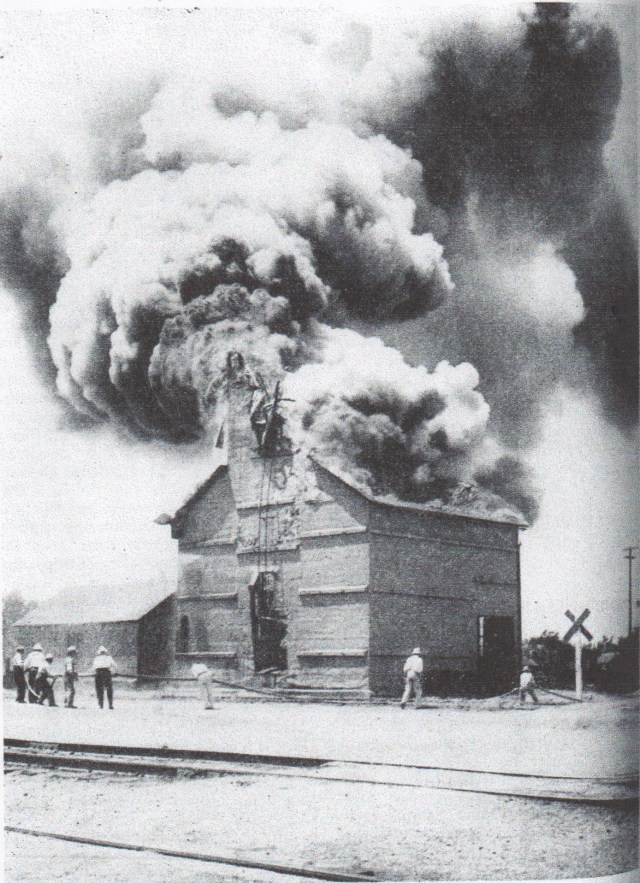

The dangers of storing grain have been well known for decades; however, history tends to repeat itself in spite of previous accidents and loss of life. When an operation falls into shoddy practices, and when safety measures are deemed too troublesome and expensive, the operation may continue for a time without incident. Eventually, the inevitable happens, and the investigators come in to discover why. The answers seem obvious in retrospect.
The explosion and fire at the gigantic DeBruce Grain facility near Wichita on June 8, 1998, was a perfect example of complacency and its consequences.
The elevator was built in 1954 by Chalmers and Borton of Hutchinson, Kan., for the Garvey Grain Company. It was a terminal elevator with arrays of tangential 30-foot-diameter bins, three abreast, with star shaped bins in the interstices. The bins were built 120 feet high and arranged symmetrically on either side of a 197-foot-tall, 21-story headhouse.
In 1955 the elevator was extended on either end, roughly doubling its capacity to nearly 21 million bushels. In total, 246 circular bins and an additional 164 interstice bins (for a total of 310) were available to store grain, in a structure that extended over half a mile. In its heyday it was the largest elevator in the world.
A key factor in the explosion of the facility was the arrangement of the runs atop the bins and the tunnels beneath. These communicated with all of the bins. A run extended in both directions from the headhouse, each containing a conveyor for distributing grain to the bins from the top using a tripper. Under each bank of bins on either side of the headhouse were two tunnels, each with a conveyor supplying the four headhouse legs. The pairs of tunnels on either side of the headhouse each had a connector tunnel between them.
All of the structure was interconnected in such a way that a fire or explosion could propagate throughout the elevator. And in fact, after the accident, that is what investigators found had happened.
For an explosion to begin, five factors must exist: fuel, oxidizer, containment, dispersion, and ignition. All of these factors are momentarily present in the controlled environment of a piston or turbine engine. In a grain elevator, the fuel is grain dust, the oxidizer is the oxygen in the air, the containment is the elevator structure, the dispersion is the suspension of dust in the air (stirred by operation of elevator components), and the ignition is the accidental trigger (a worn component, an electrical spark, or negligent smoking, for instance).
All these factors must be controlled to keep a grain elevator operation safe.
The DeBruce Grain elevator fire started with a seized bearing on an operating conveyor in one of the tunnels. The roller with the failed bearing stopped turning while the belt continued to run over it, causing excessive wear and heat. Dust grains in contact with the roller ignited. The fire touched off an explosive mix of suspended grain dust and air stirred up by conveyor operation. Very quickly, the entire elevator was involved in the disaster.
The concussion of the first explosion suspended more grain dust, causing a chain reaction. In a series of explosions, the fire propagated through that tunnel and through the crossover to the other tunnel on that side of the headhouse, running from end to end, then to the headhouse from below, and up and back into the run on top of the bins on that side, where it flamed out in an area that had been cleaned of dust. Only that run failed to explode. From the headhouse, the explosions propagated into the run, bins, and tunnels on the opposite side, until all of the explosive fuel was consumed.
The initial and follow-on blasts caused massive destruction. The headhouse sustained multiple explosions as the concussion reflected back in that direction at multiple points of entry. It was pulverized. Workers were trapped in the headhouse on floors above the worst of the destruction. On one side of the elevator, most of the bins blew their tops, utterly destroying the run above. The tunnels filled with grain that spilled from the bottoms of the wrecked bins, greatly complicating rescue and recovery efforts.
Seven employees and contractors died on the site–four in or near the tunnel adjacent to the ignition point, one in and one near the headhouse, and another blown clear of the elevator. Another ten were injured. Three of the hurt were trapped in the headhouse and another made his way out onto a bin roof. Some were outside of the elevator when they were injured by the blast.
A fascinating account of the rescue is included in the accident report. Eventually, a construction crane deposited rescuers and retrieved survivors. A helicopter from Fort Riley also plucked survivors from the top of the structure.
This was a textbook case of negligence, according to investigators. The dust was allowed to build up well beyond safe levels, and installed dust control systems were allowed to fill up and clog and become inoperable. Limited cleaning was done by employees by hand. The faulty bearing had ignited before, just days before the explosion, but it was not repaired.
The accident prompted interested parties to initiate an investigation, which was later sponsored by OSHA. The report is published on the OSHA site. The Grain Elevator Explosion Investigation Team (GEEIT) report is the source for the details presented here.
For those interested in learning more about the accident, an excellent article detailing the aftermath can be found at grainnet.com.
How do you start an essay about the places you miss while traveling? Rolling along a two-lane highway as it becomes dark is a good way.
As you slip beyond the scenes of daylight, your awareness imperceptibly closes in on you until the oval of light from your headlights is your entire world. The highway center-line stripes brighten as they slide by your left knee, keeping a hypnotic rhythm as you fight to stay alert. You see the occasional shadow of a grayish body slipping across, almost out of sight on the edge of your pavement pool save for a momentary flash of eyes, cautiously regarding your progress, shimmering like a pair of reflectors in the ditch.
The rhythm lulls you and you reach for the chewing gum and start looking for a friendly gas station with a tolerable cup of coffee.
Then you know you are missing things.
If it were not for a fortuitous change in our schedule on the way out, when of course we had no time to stop, I would not have known that this inconvenient sunset would obscure two elevator sites. Usually on this trip, this highway is where we stretch the mileage after dark until we can go no further. It is true whether we are starting from camp and stretching the return trip past Ogallala, or rolling from Ashland and hoping to make it as far as Torrington, on the way our hunting spot beyond Lysite.
Somehow, the view on this road is only as wide as the pavement, every time.
On other trips the stopping spot has been Sidney, where we stay the night, then in the morning we drop into the Cabelas on the way toward Casper for last minute items like socks and bb’s. On our return trip, we overnight in Sidney again to visit Cabelas to get the stuff we forgot so we have it for next year (of course by that time, the new stuff has been misplaced and we go through the whole routine again).
On those occasions we bypass this road altogether.
On our way back through–this time, after dark, Llewellyn is the first newly discovered elevator site we see. The old wooden house stands hard by the road with bins lined up on either side. A Purina checkerboard shows faintly in the darkness, but a photograph is out of the question. We are pushing the miles, and the setup for this dark building would be time consuming and the results would be marginal, so we pass it by. I note the town for future reference, for that imaginary trip when we will be rolling through in full sun with all the time in the world.
The second elevator location comes into view when we are just about at the end of our rope in Ogallala. I have gone through a pack of gum, and I have made reservations for a motel somewhere nearby for the night. We are stumbling in past midnight. One old wooden elevator displays a Nutrena sign from it’s spot at the end of a short lane, where it nestles among round bins and bathes in dimly yellowish artificial light. As we roll across the viaduct in town, which takes us over the tracks, we see another silvery old-timer on our left which looks intriguing. I will have to check these elevators later.
In the morning, all is forgotten as we get on our way toward Ashland.
This is how you leave a patch of geography perpetually obscured in darkness, and scarcely notice its absence. The absence doesn’t breach your consciousness until you notice what is missing, and that can take a long time.
I spend my professional life flying across the continent in the dark, with things like the Grand Canyon and the Rocky Mountains passing below unremarked. A scattering of lights strewn across the land are all the clues to life below—like droplets of water on black velvet, illuminated by an unseen light, they twinkle and tease.
The familiar cockpit lights are my entire world with little else to distract—the gum to keep me alert, or coffee sometimes, and a cozy hotel to look forward to.
We live far from the preponderance of the nation’s grain elevators. Time and money are not unlimited, so it takes a good excuse to go look at elevators when the family has other things on the agenda. Western hunting expeditions are a splendid source for such excuses, so once or twice on each trip, I sneak in an elevator stop.
On a typical trip west, when you have a camera and the inclination to take pictures, vistas of country living make you suddenly pull over, disentangle the camera strap from the seatbelt, and send snack wrappers tumbling to the floor. A few epithets escape your lips when you find the ISO is still set for the moon shot of the night before, but unless a fleeing bird made you stop, the problem is quickly fixed.
In the hotel at night you eagerly page through the day’s images, occasioning a few more blue words, but often great satisfaction. You have elevators and neat old buildings, and you also have scenery. The rest of your family members roll their eyes and talk about elk and pheasants and bird dogs.
The fruits of your labor make it worth the effort–especially if you come home with beautiful pictures and meat for the freezer.
On the eve of another hunting trip, here are a few photos from earlier trips, including the odd elevator picture or two that slipped into the mix.
An eagerly awaited package arrived in the mail the other day. I opened it to find Bruce and Barbara Selyem’s 2016 elevator calendar–a vivid sampling of the photography work that Bruce has done over the years. Barbara Selyem called me to see if I would like one this year–I am an old customer, and I get one every year. So of course I asked her to send it.
Thirteen carefully selected images grace the calendar, and it does not disappoint.
Selyem Enterprises also produces framed elevator images for home and business, and if I bought everything I liked, I would run out of wall space very quickly. Bruce has documented many beautiful old wooden elevators in the United States and Canada that have gradually disappeared. Over the 20-plus years Bruce has been shooting elevators, most of the structures have only his photos to remember them by.
If my kids had anyone to blame for the numerous side trips, excursions, and stops we have made to take pictures of wooden elevators in the wild, Bruce Selyem would top their list. I have studied his website carefully to plan for elevator photography trips in Idaho and Oregon. Many times the kids have admonished me for the odd elevator stop on the way to Nebraska. I can’t help it. They are beautiful.
Though not many of my wooden elevator photos have been published here, there is quite a collection of them. It is a passion, and I come by it honestly.
My grandfather, William Osborn, took many photos when I was a little girl. I remember the bellows on his camera, the camera body he carefully set up on a tripod, and his advice to sit still. He would pull the Polaroid photo out of the back of the camera while he started his buzzing timer. The hand on the timer would move interminably, and I would stand on tip-toe, eagerly awaiting the magic moment. Then he would peel the negative away and voila, a damp image would emerge, which I would hold gingerly by the edges while it dried.
As a girl, I wondered at the photo of his first elevator in McCook, Nebraska, that he built for Mayer-Osborn. I never knew I would combine his love for photography with his life’s work one day, and share all of it here.
To check out the photography of Bruce Selyem, visit his website at grain elevator photos. Bruce and Barbara Selyem welcome you.
It is getting harder to visit our grandfathers’ elevators. All of the elevators within a half hour either side of the I-80 corridor have already been exhausted, so a stop for photography requires real planning and extra gas, time, and effort, even when piggybacked on our normal family visit to Nebraska.
The trip to Alta, Iowa, required just such an extra investment in driving time. The town and its Tillotson elevator is just north-west of Storm Lake in the northwestern corner of the state, and is not, quite frankly, on the way to anywhere.
I wonder how our kids put up with it. This trip in particular required over an hour’s northward jaunt before angling generally east-northeast, with a 30-minute divot or two along the Nebraska-to-Illinois route. Each detour took in wayward sites, including Alta.
It is normally a 10-hour drive to get home from visiting their grandparents, but this elevator excursion would tax my children’s patience for several more hours. To be fair, we got an extra early start. But that meant the serious backseat fidgeting would start sooner.
You would think that I would study Tillotson records first, and inject some discipline and efficiency into planning our route.
But no, that task was left for after the trip, so I could see how closely we approached several sites without seeing them.
I don’t think the kids minded the near misses–but they’ll get to see the countryside again when we go through to mop up the strays.
In an earlier post, we showed that the elevator built by the Tillostson Construction Company in the northwest Iowa town of Blencoe had a structural failure prior to completion. A photo provided by Tim Tillotson showed that the concrete slumped over the driveway after the slip-form pour had progressed considerably past the point of failure. Construction would have halted there. The question of how the elevator was completed was never answered.
In the company records we have, the specifications log ended by 1956, while the company continued to build elevators beyond that date. So later records are lost to us. Tim Tillotson estimated that this mishap occurred in about 1955. I discovered, on review, that Blencoe was not in the specifications at all. Why?
A photo of the manhole cover on the rail side of the elevator could provide the answer. It is not typical for Tillotson elevators to have exterior manhole covers on elevators of this type, so the existence of these was a little surprising. More shocking was the identity of the company that placed them.
The Grain Storage Construction Company of Council Bluffs, Iowa, is not familiar to us. It may be the company called in to repair the damage when the failure occurred.
We don’t know if Tillotson Construction was fired on the spot. But it is also possible that Tillotson was given a second chance–the design of the elevator clearly follows the trademark Tillotson design, whether copied by some one or built by the original contractor.
I wonder if the original repair destroyed the structural integrity of the elevator, and Grain Storage Construction was brought in to replace two of the bins. We know it was a later job because of the 1959 date on the manhole covers. Unfortunately, I made my visit on a Saturday, and the co-op was closed, so there was no one there to ask.
It is a beautiful, functional elevator today. It stands beside the older Mayer-Osborn elevator, which is also clearly in use sixty years after it was built. Both elevators had problems during construction, but the capacity was urgently needed, so both projects were finished. How the Tillotson elevator ultimately became a Grain Construction Company branded elevator is a mystery we will try to solve in a future post.
Photo from the Virginia Slusher archive
We believe the woman on the far right is Mary Melia. Her husband Marvin also worked for Tillotson Construction Company and served as a pilot. Virginia Slusher is second from right.
Mary Melia died six months ago. Here’s an obitiuary:
Melia, Mary Clare (Burns) Aug 31, 1922 – Dec 29, 2014
Preceded in death by husband, Marvin G. Melia. Survived by children, Marvin G. Melia II of Pleasant Valley, Mo., Mary Lou (Timothy) Brennan, Steven M. (Janet) Melia of Cheyenne, Wyo., and Donald L. Melia; brother, Jack (Carol) Burns of Twenty Nine Palms, Calif.; 10 grandchildren; 10 great grandchildren and many nieces and nephews.
VISITATION Thursday, January 1, 2015 from 4-7 pm with a Rosary at 7 pm at Roeder Mortuary 108th Street Chapel.
FUNERAL SERVICE Friday, January 2, 2015 at 10am at St. Philip Neri Church 8200 N. 30th Street.
Interment Holy Sepulchre Cemetery.
These photos are from my travels across Highway 34: Aurora Cooperative and their branch at Murphy. The workhouses would indicate Tillotson. The new two-tank annex at Aurora was done by Todd & Sargent. I believe the four-tank annex at Murphy was T&S as well.
You’ve gotten me thinking about all the construction I was involved in. Here comes some more history.
Prior to the past eight to 10 years, there were two boom periods of elevator construction in the Midwest. The first is well documented by your blog— early ’50s thru mid 60’s. That was the mechanization age of United States agriculture.
By the ’60s, however, we were building flat storage buildings for the Commodity Credit Corporation. This and the United States Department were our market–and our only market. I still remember being in St. Edward, Neb., in 1975, and being told that the co-op had just gotten shipping orders on 250,000 bushels of wheat that had been in storage there for 12 years.
That’s what paid for the monster terminals in Hutchinson, Salina, Wichita, and Enid.
The second boom period followed the Russian wheat deal of 1972 and 1973. After that purchase, the USDA eliminated diverted acres and we went to wall-to-wall production. It created the need for new, and faster capacity.
This boom lasted into the early 1980s. It was assisted in Nebraska by center-pivot irrigation.
Most of the elevators were built by co-ops. Cargill, Continental, and a few local privates built in Nebraska, but not many. Peavey was a purchaser rather than a builder.
Farmland Industries served as the general contractor on virtually all of these elevators and annexes. At the Bank for Cooperatives, we waived the need for a performance bond if Farmland was the general contractor.
That saved a ton of money for the client, and also Farmland paid patronage dividends on the project. Farmland then subbed out the contracts to the major builders that they used.
These were Mid-States, Jarvis, and Borton as the main players. Farmland also brought Wilson, Venturi, and Jordan into Nebraska when demand heated up.
Todd & Sargent did several projects in Nebraska, but mainly stayed in Iowa—lots more grain (and new elevators built) over there.
Quad States built a few facilities (Rising City, Shelby, Benedict, Hooper, and Milford) in Nebraska as well.
There are a couple of odd ones that occurred when the general manager had had experience with a contractor from a different state.
For example, the big elevator at Tamora was built by Conger, a Minnesota company, and the newer workhouse at Plymouth by Weigel, also of Minnesota.
During this period, most facilities–elevators and annexes–were built with 24- to 28-foot diameter tubes.
Toward the end of this boom time, we started seeing en masse conveyors used on annexes, replacing Texas headhouses and open belts with trippers.
We also saw the movement away from small tube elevators to 40 ft and larger diameter tubes.
This was due to two factors: the producers’ yields and harvest speed and the movement to outbound unit trains.
